Disassembly And Assembly: Notes

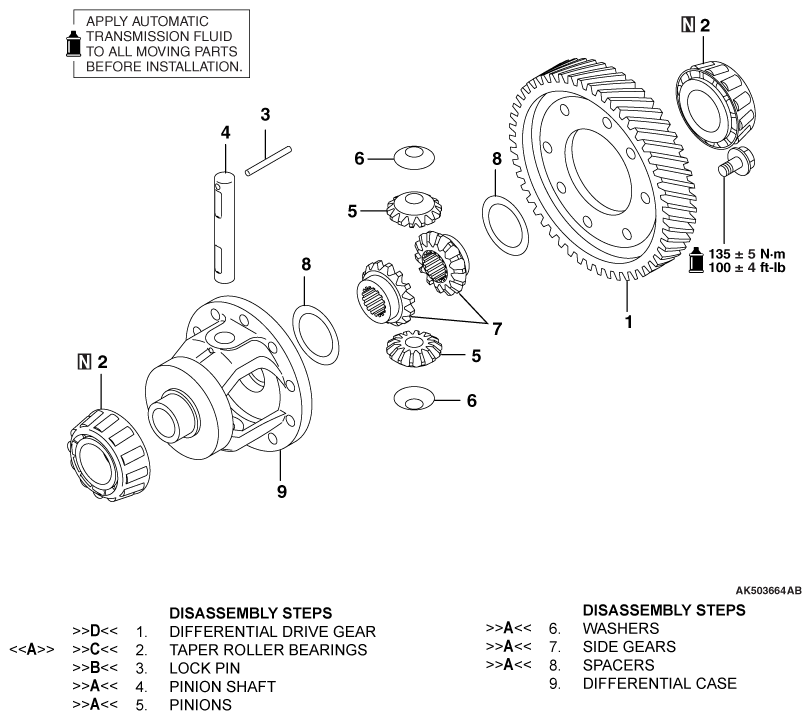

Fig 1: Differential Components With Torque Specifications
G06717791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
