Fuse Block: Locations

CENTRALIZED JUNCTION

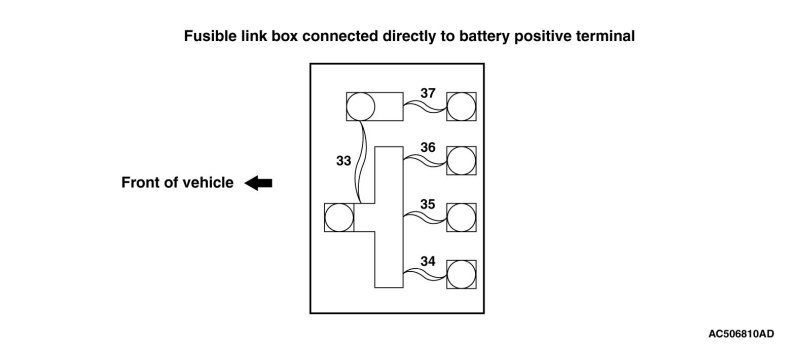

FUSIBLE LINK AND FUSE

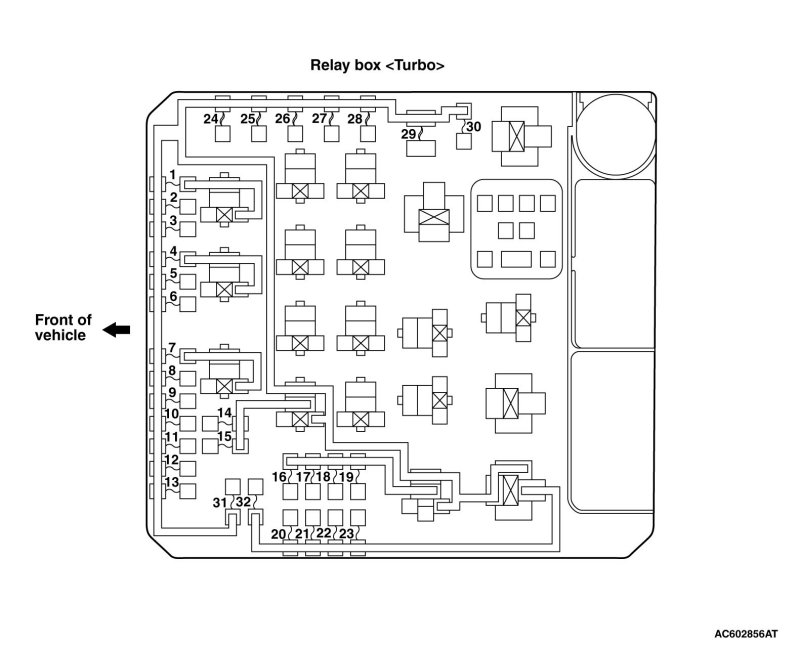

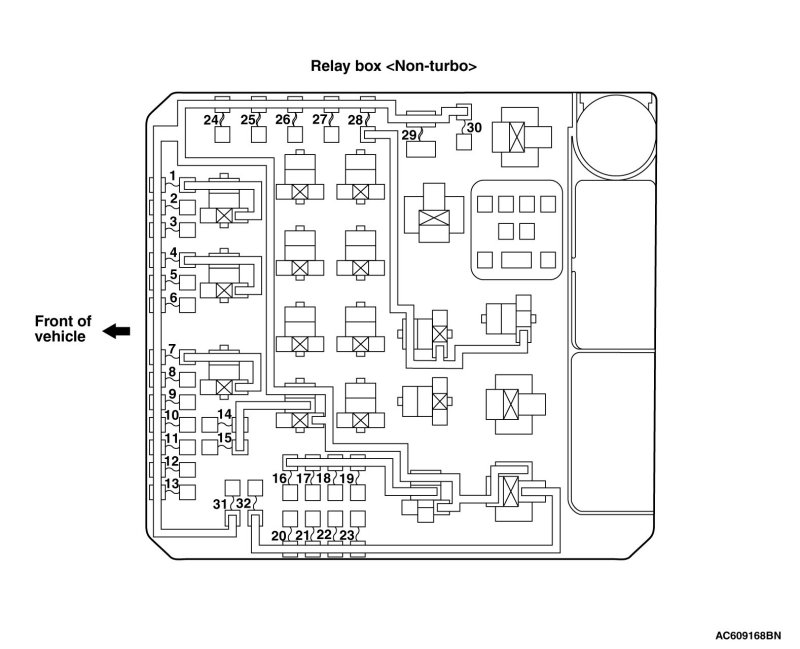

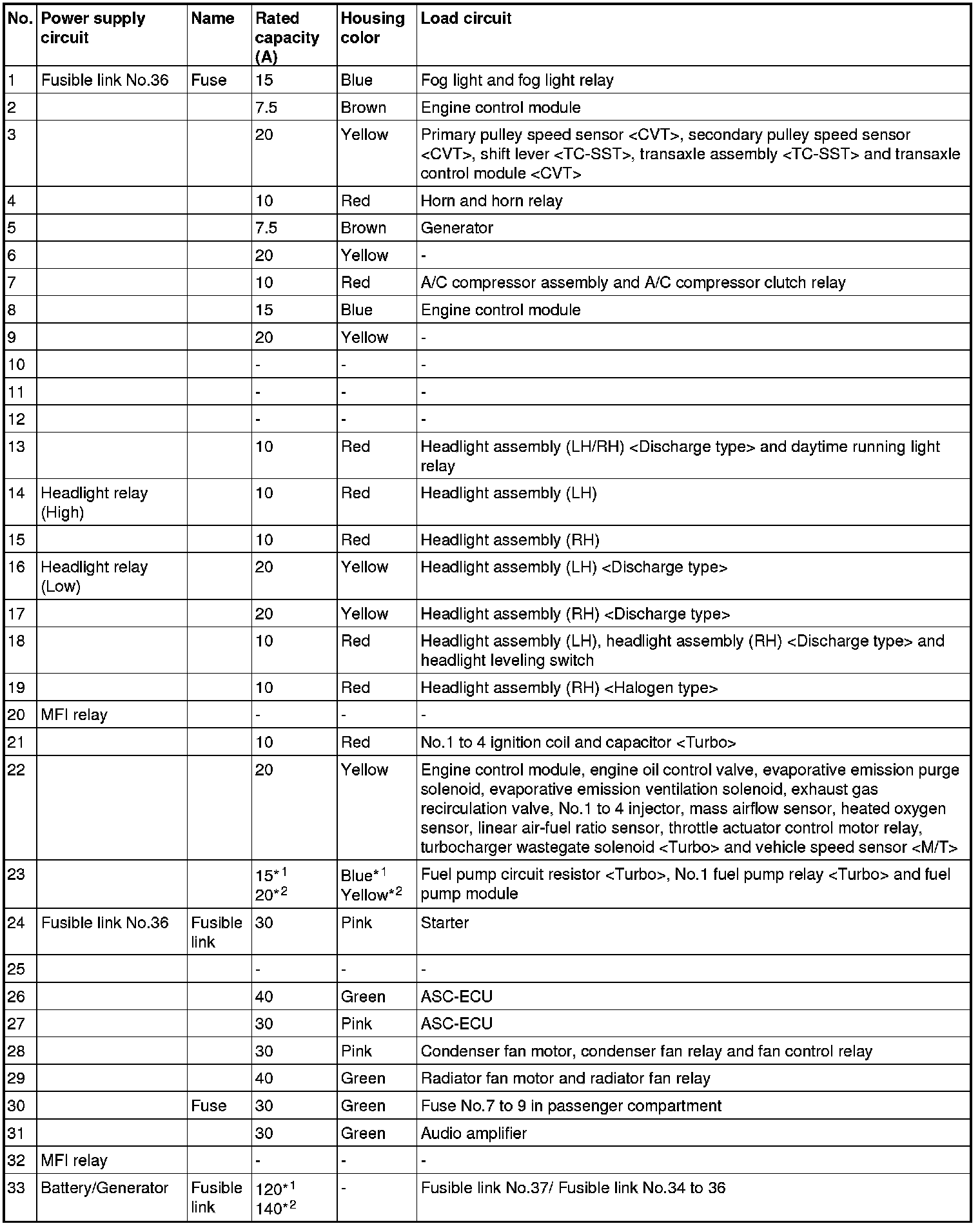

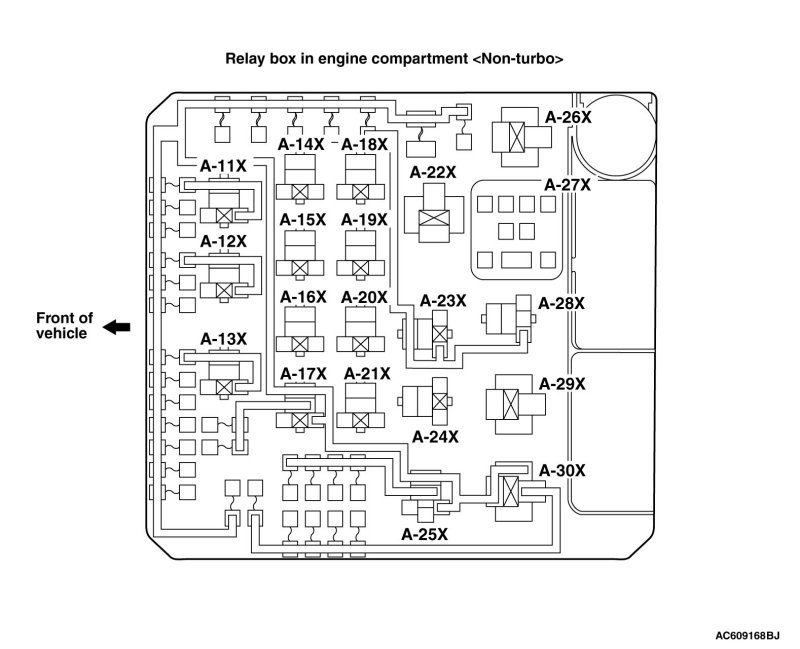

ENGINE COMPARTMENT










NOTE:
1. *1: Non-turbo

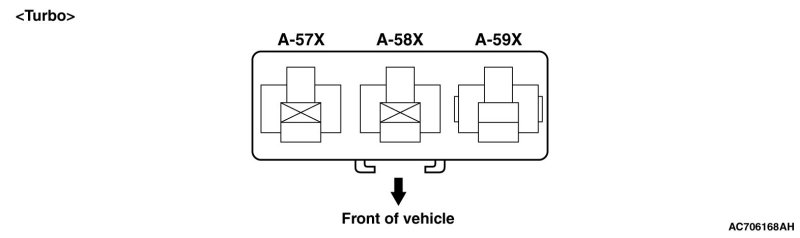

2. *2: Turbo

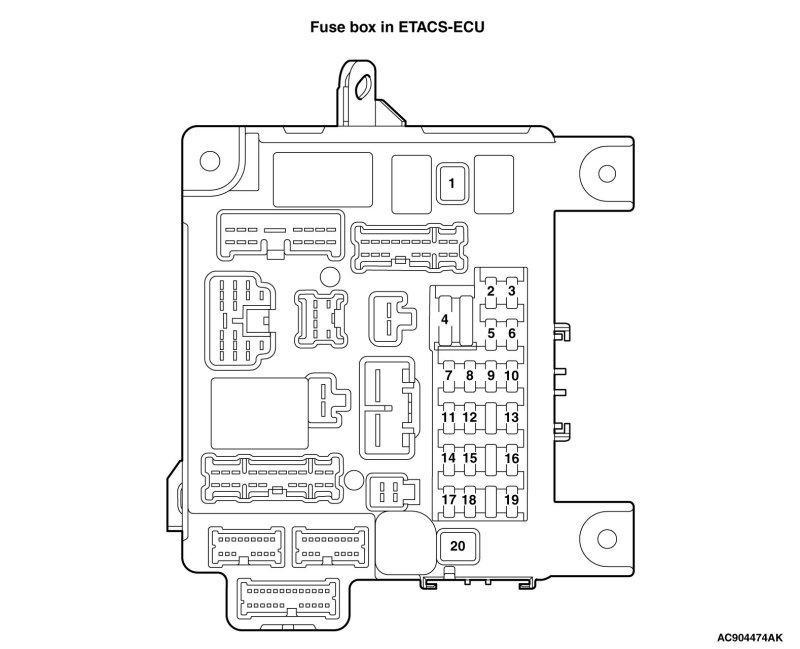

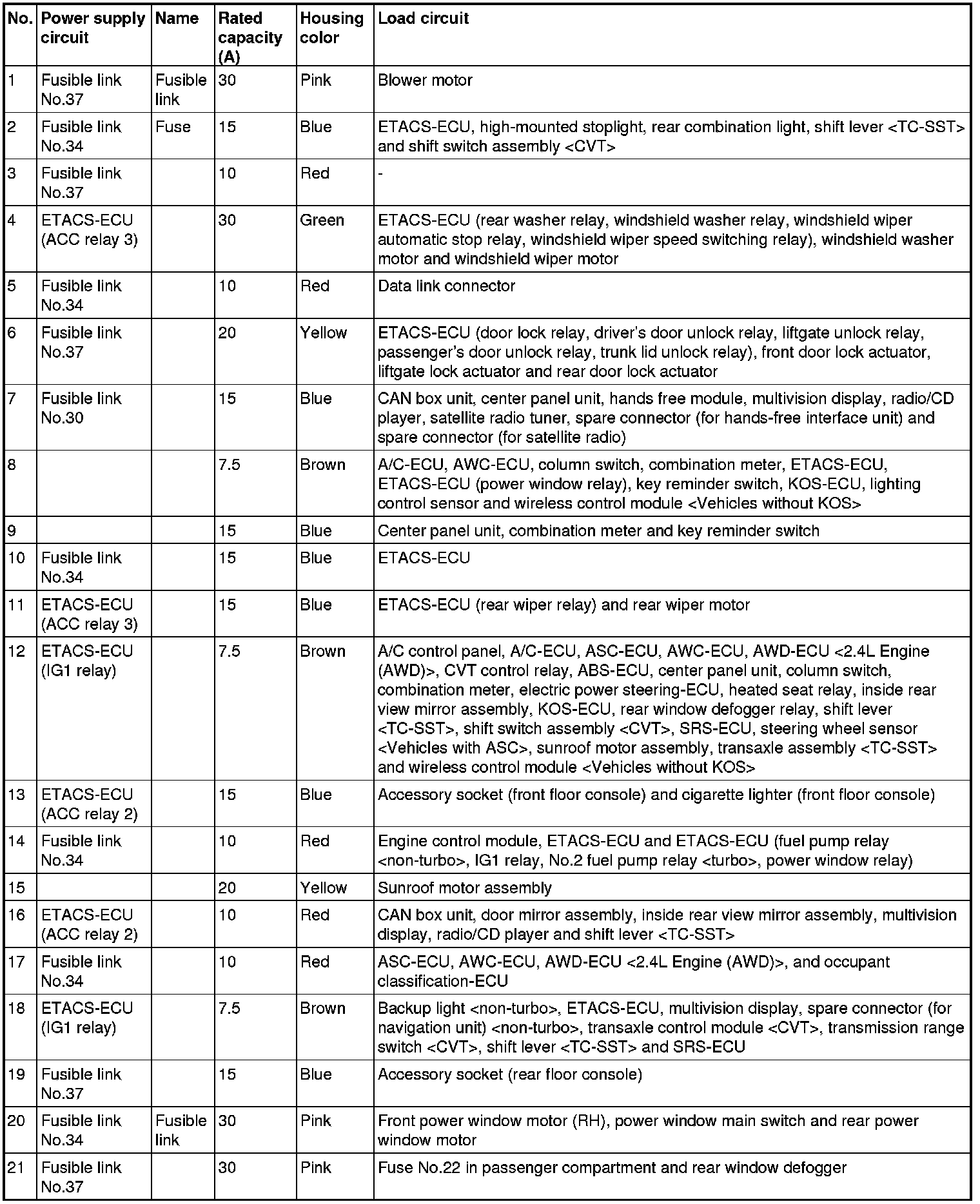

PASSENGER COMPARTMENT

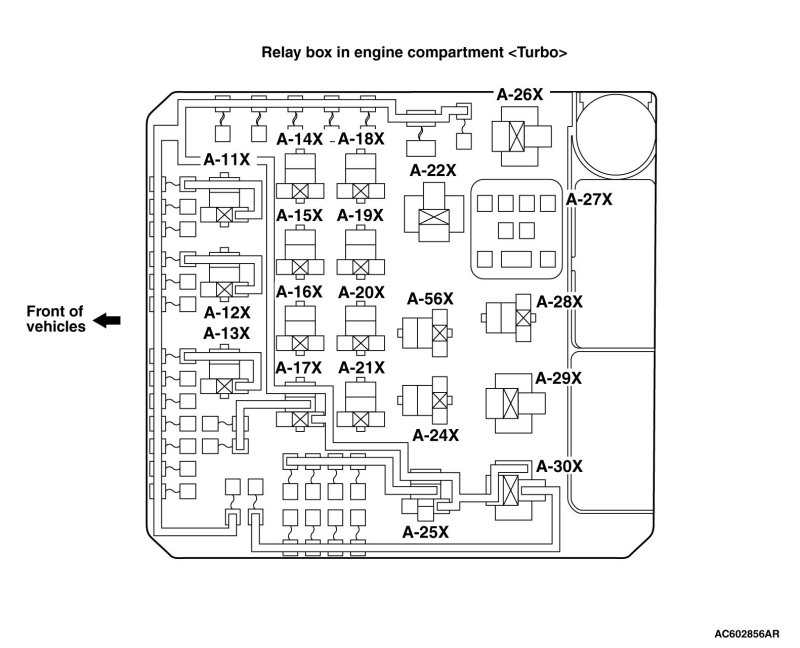

CENTRALIZED RELAY
