DTC C1613: AWC Mode Select Switch System (Clogging) <Vehicles With Steering Audio Remote Control Switch>: Notes

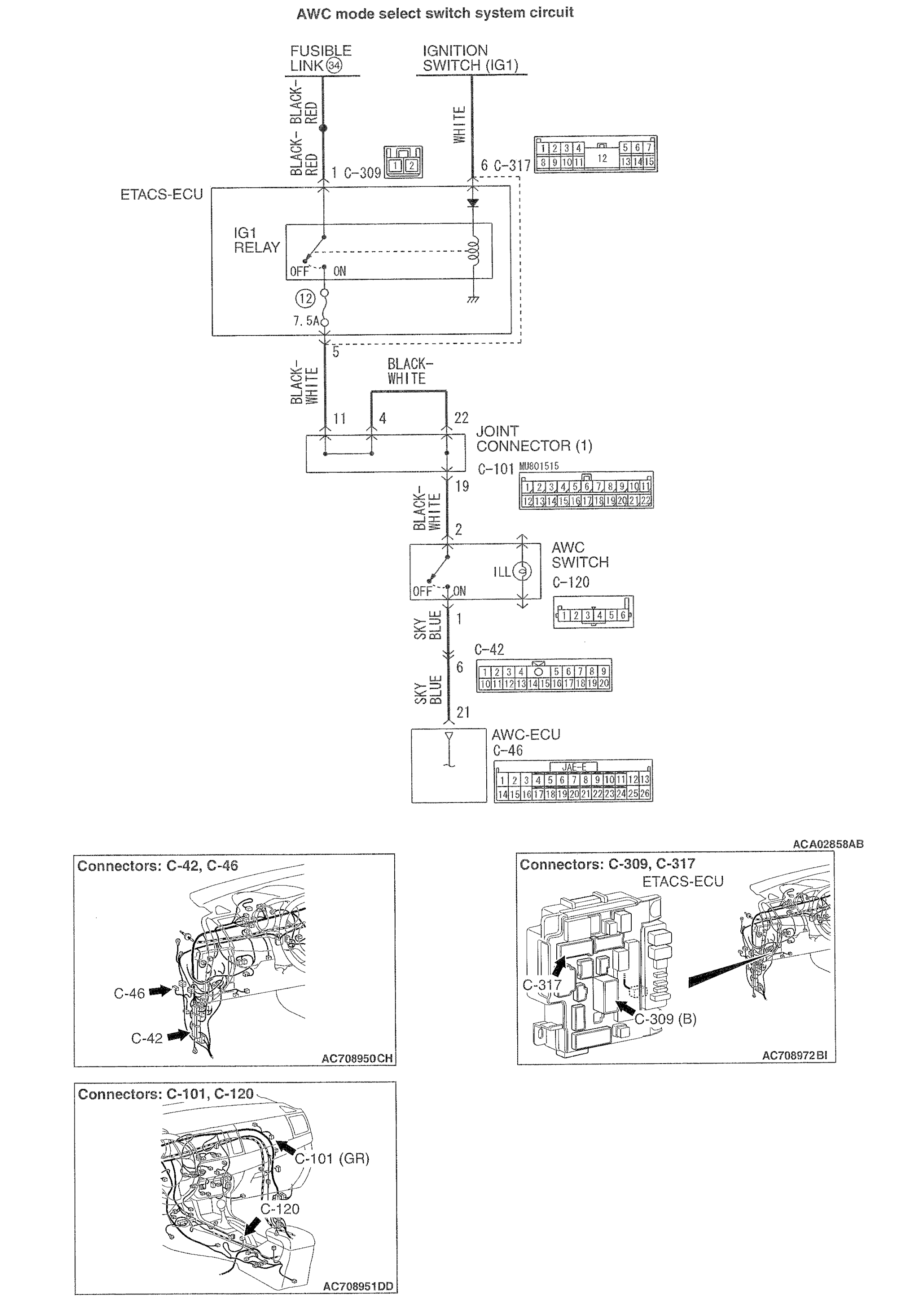

Fig 1: AWC Mode Select Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
• Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
