DTC U1515: No-Bus Activity Error (LIN): Notes

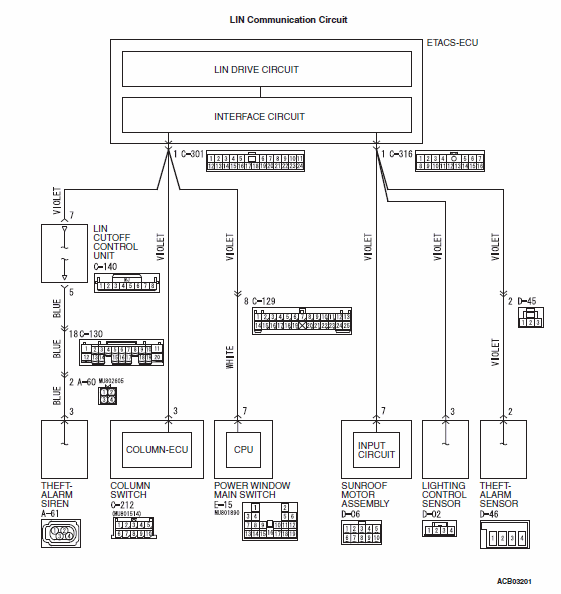

Fig 1: LIN Communication Circuit Diagram
G00528502Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

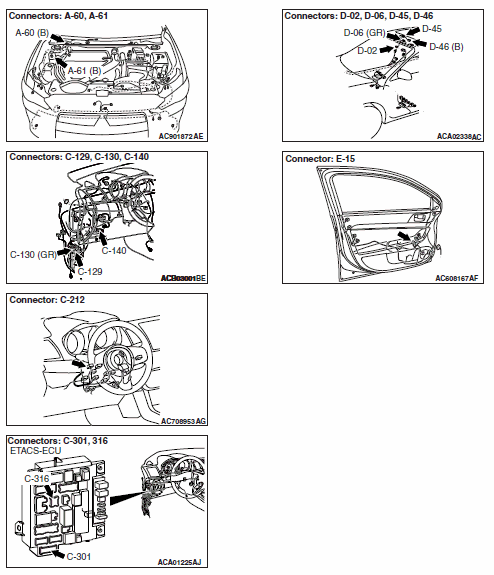

Fig 2: Locating LIN Communication Connectors
G00528503Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
