INSPECTION PROCEDURE 7: The Rain Sensitive AUTO Wiper Function Does Not Work At All <Vehicles With Lighting Control Sensor>: Notes

CAUTION: Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

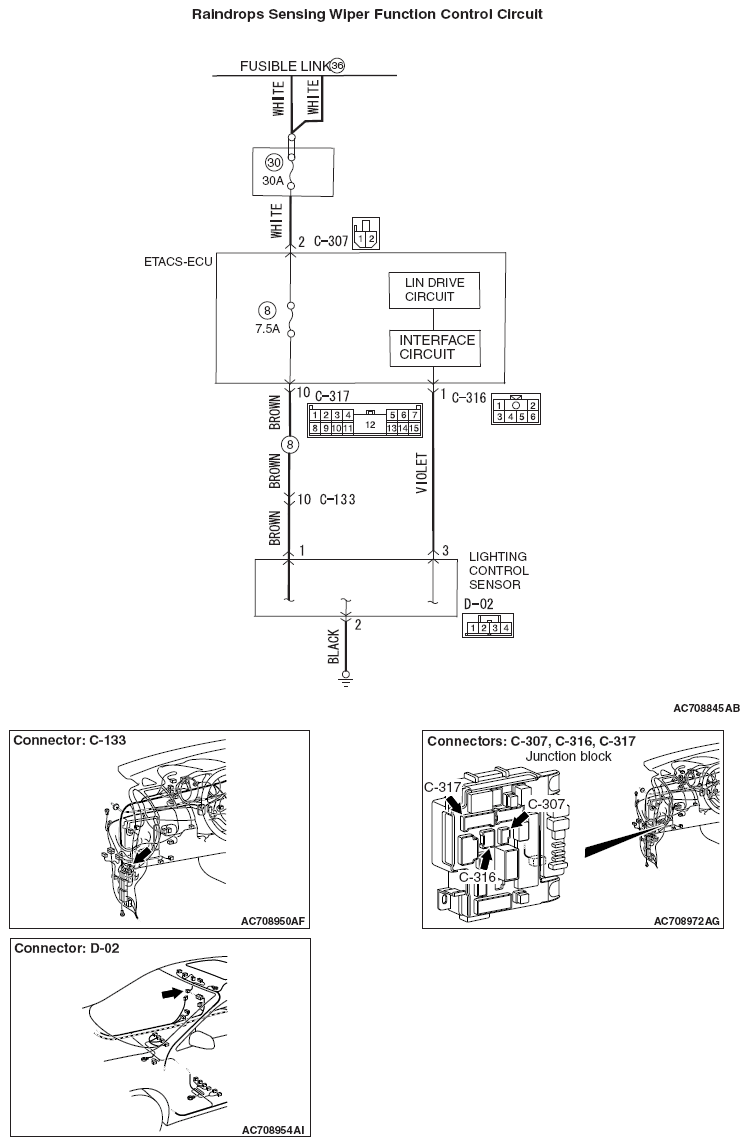

Fig 1: Raindrops Sensing Wiper Function Control Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
