Removal And Installation: Notes

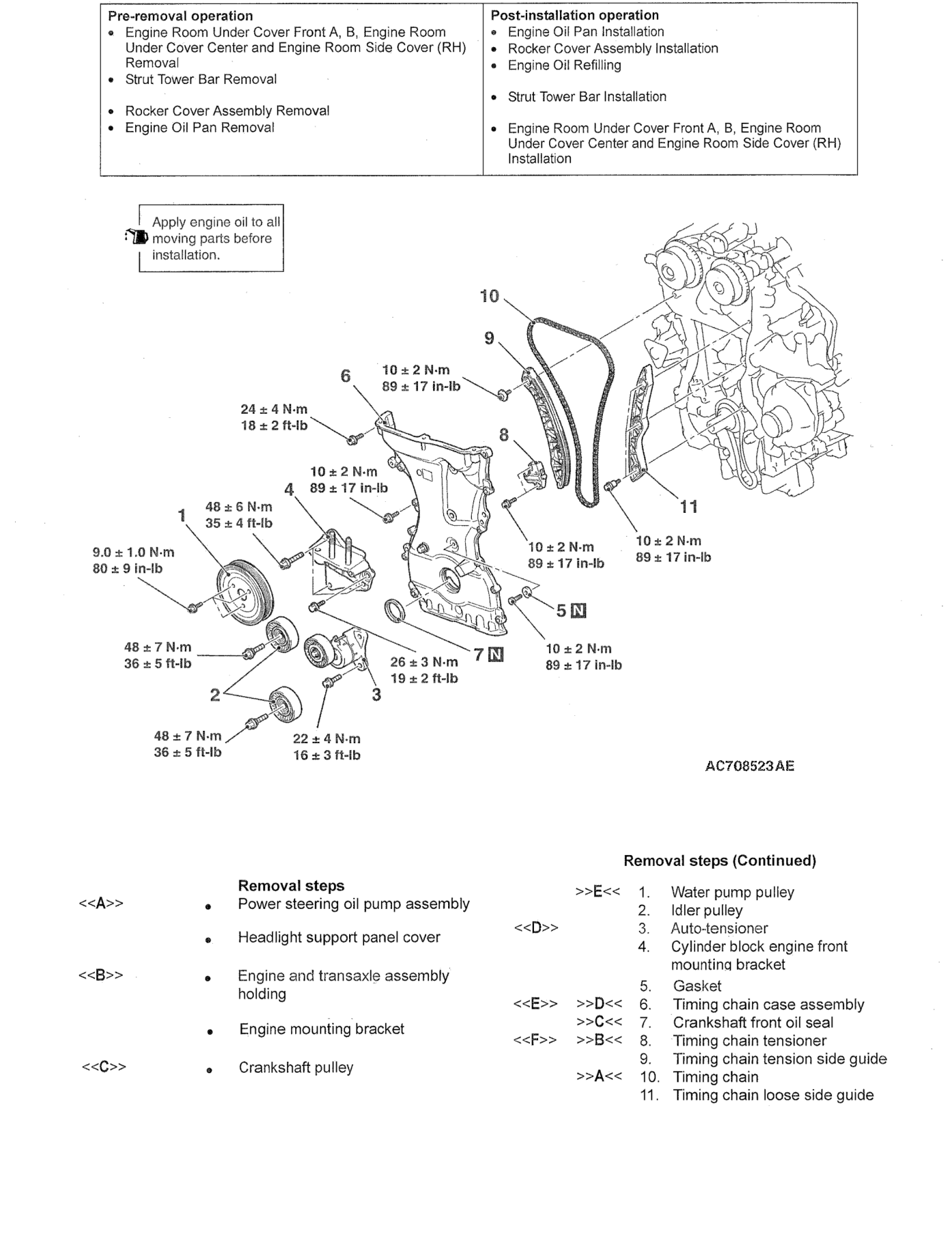

Fig 1: Timing Chain Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991454: Engine Hanger Balancer
• MB991895: Engine Hanger
• MB991928: Engine Hanger
• MB991448: Bush Remover And Installer Base
