DTC B2101: IG SW Start POS. Circuit Low; DTC B2102: IG SW Start POS. Circuit High: Notes

CAUTION:

• If DTC B2101 or B2102 is set, be sure to diagnose the CAN bus line.
• Before replacing the ECU, ensure that the communication circuit is normal.

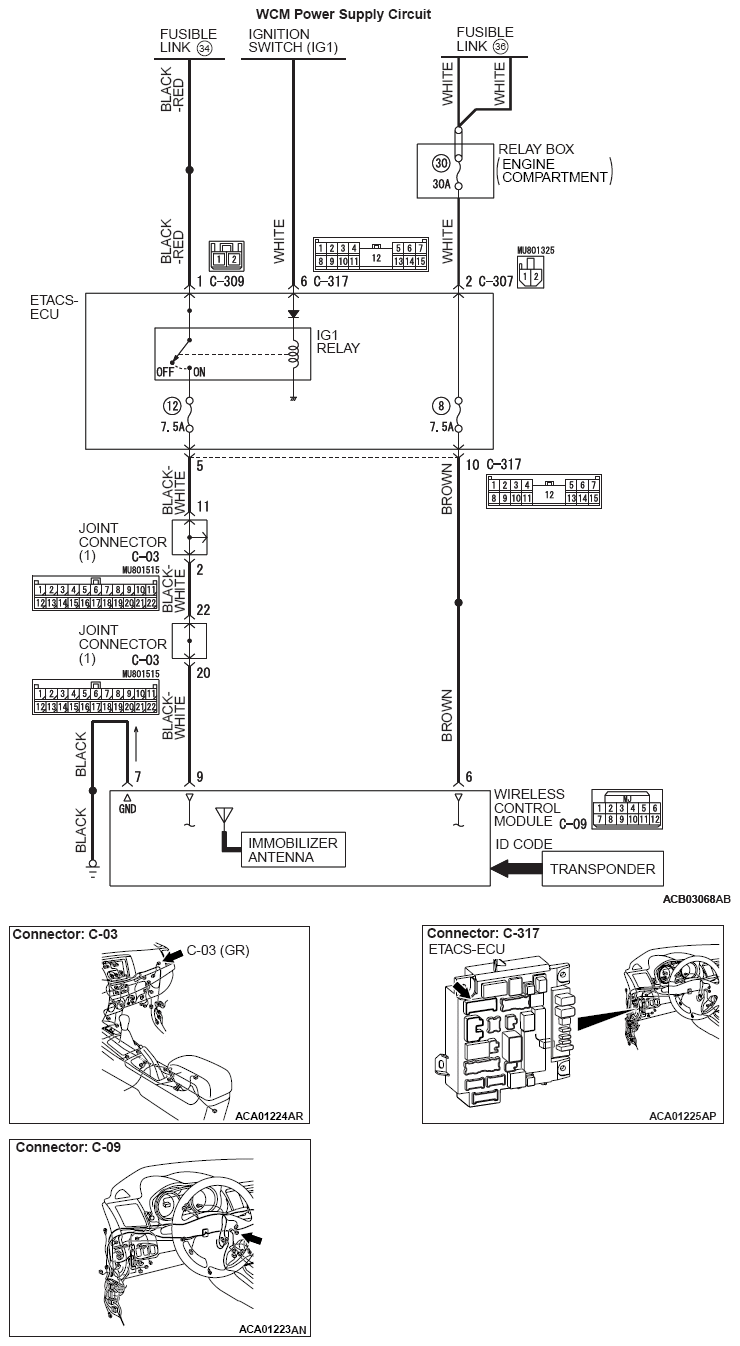

Fig 1: Wireless Control Module (WCM) Power Supply - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
