Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not disassemble or throw the liftgate gas spring into the fire.
  • Before disposal, make a hole to remove the gas.
  • Make sure that the piston rod should not collect any foreign particles.

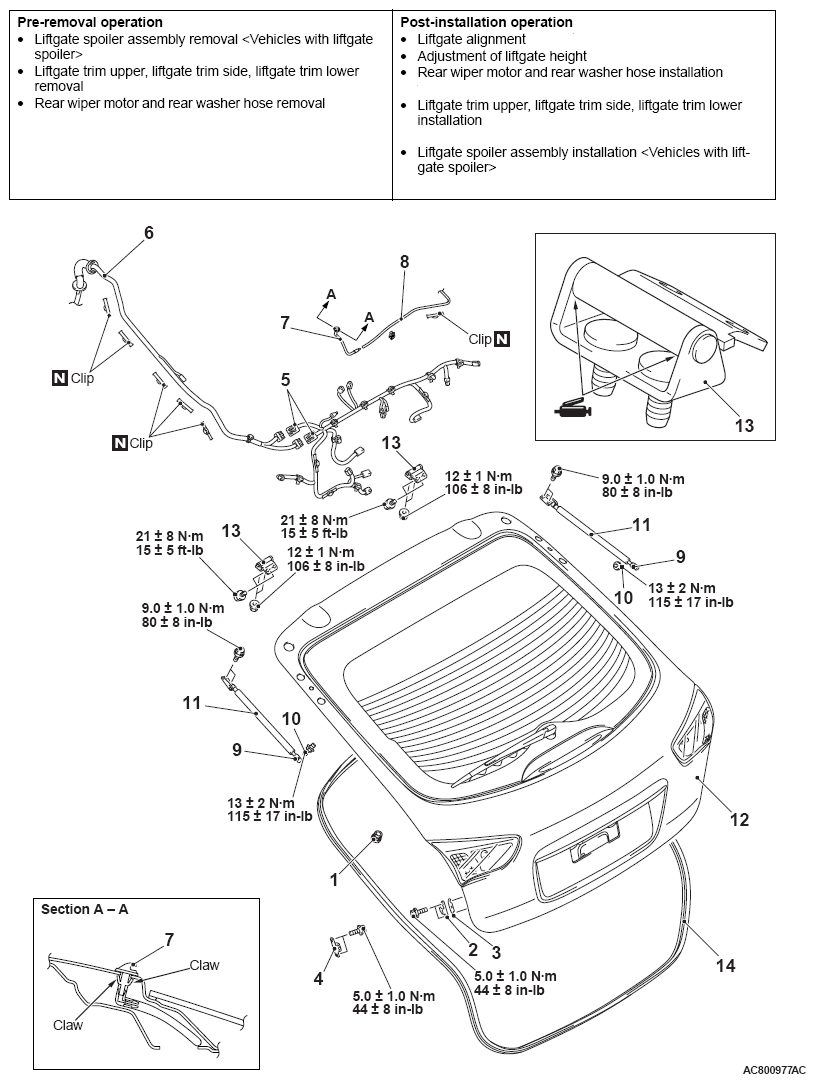

Fig 1: Liftgate Components With Torque Specifications
G08294522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

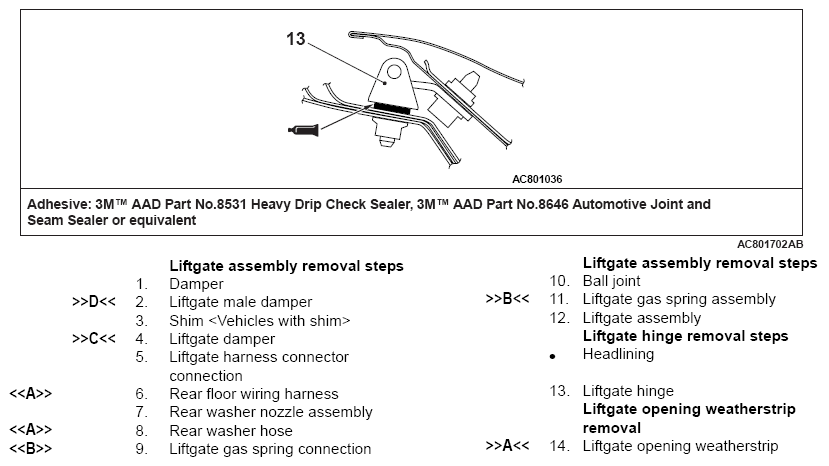

Fig 2: Identifying Liftgate Hinge Sealer Application Area
G08294523Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
