Removal And Installation: Notes

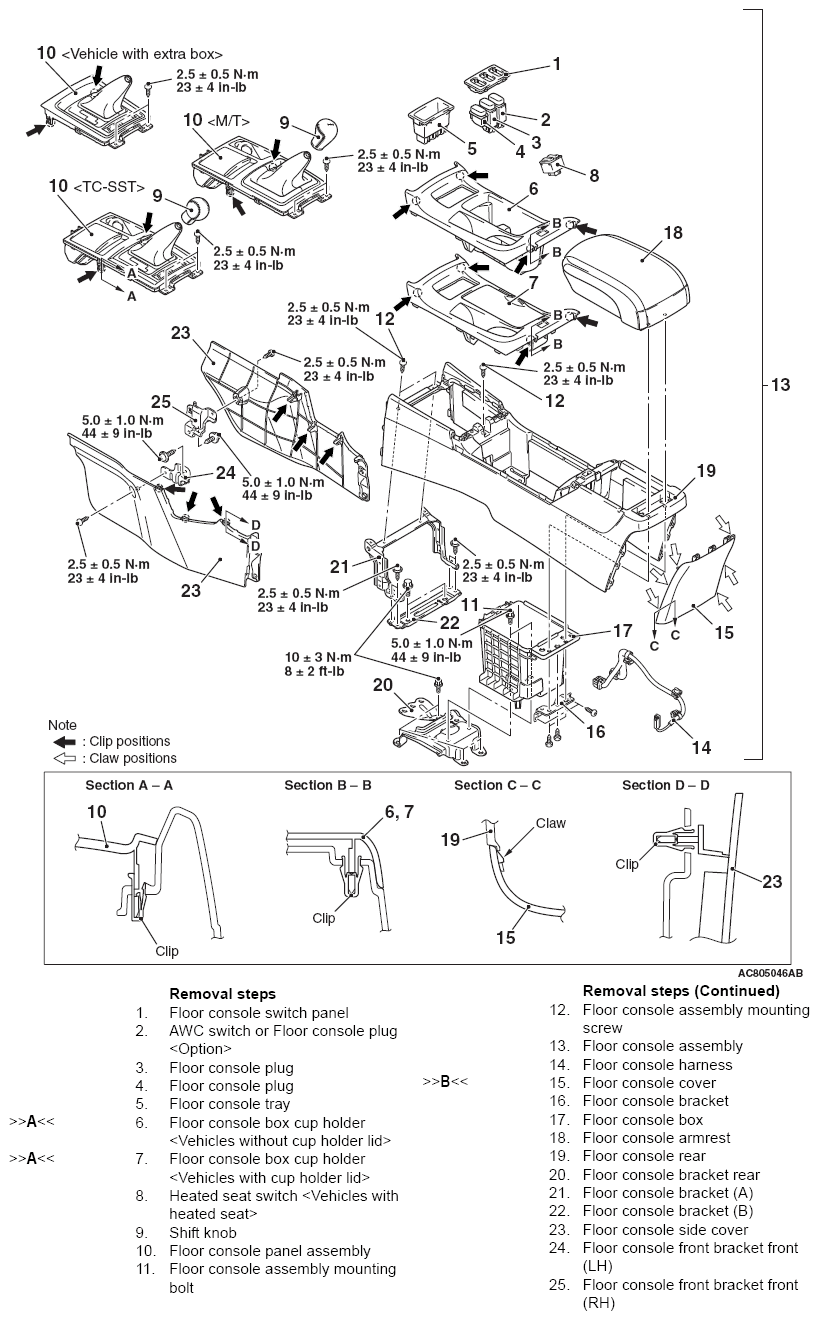

Fig 1: Removal & Installation Of Floor Console Assembly With Torque Specifications
G06677976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
