Removal And Installation: Notes

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

BOLTS AND SCREWS REFERENCE CHART

Name Symbol Size (D x L) mm Color Shape
Tapping screw a 5 x 12 -
G05102804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
b 5 x 16 -
c 5 x 12 -
G05384591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer d 5 x 20 -
G05102809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
e 6 x 16 -
G05384593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
D: Thread diameter, L: Effective thread length
CAUTION:
  • Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger side air bag module.
  • Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

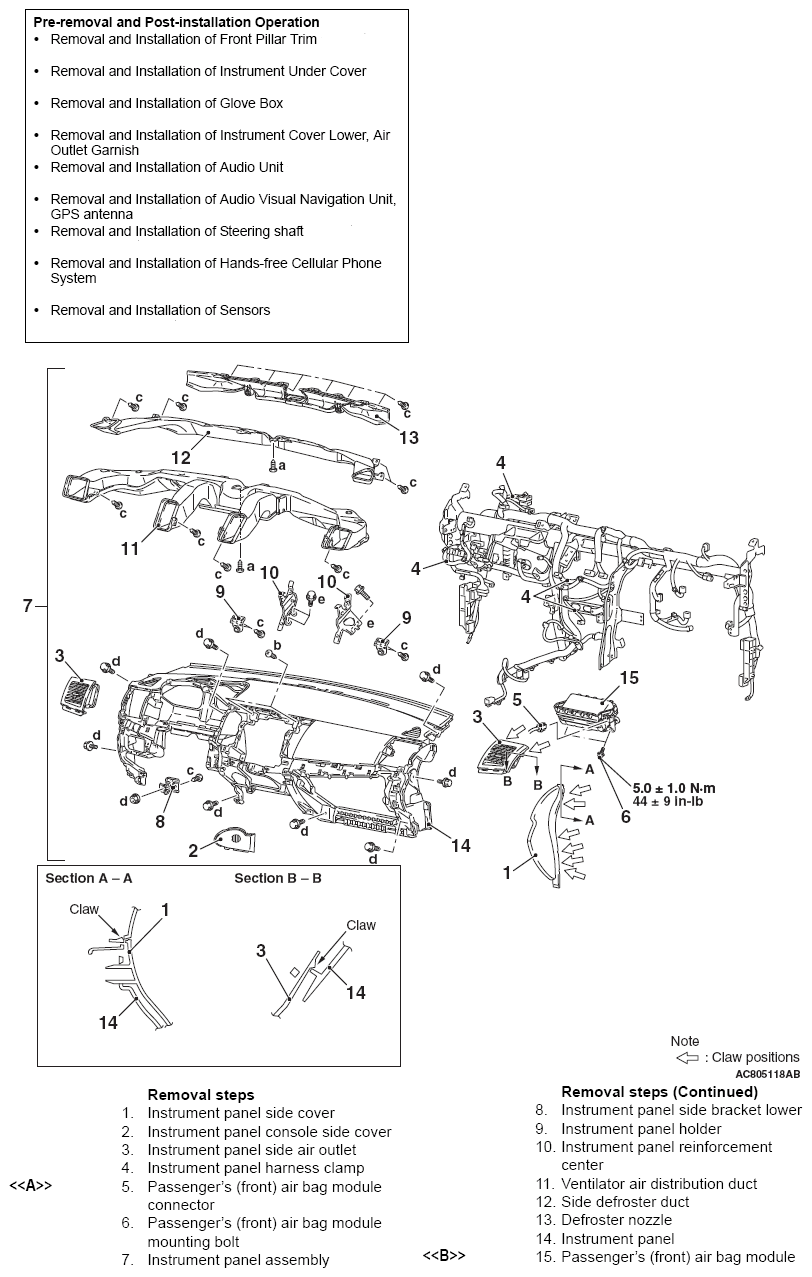

    Fig 1: Removal & Installation Of Instrument Panel Assembly With Torque Specifications
    G06677970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
