Disassembly And Assembly: Notes

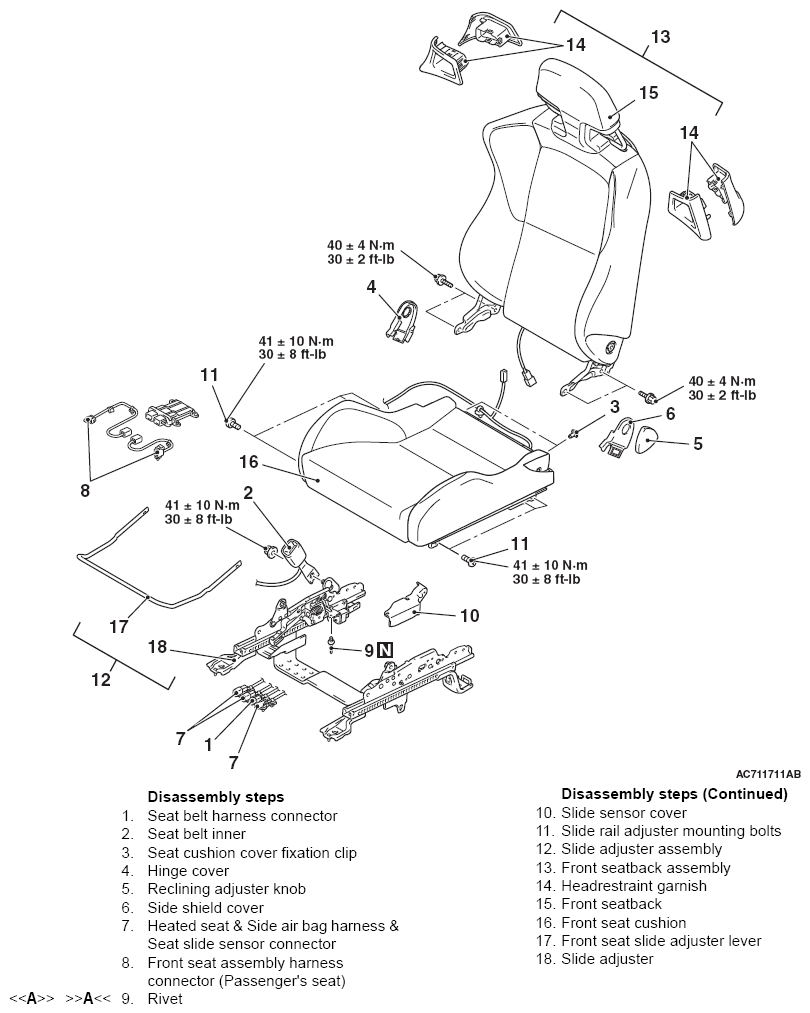

Fig 1: Seat Assembly Components With Torque Specifications
G06677998Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
