Removal And Installation: Notes

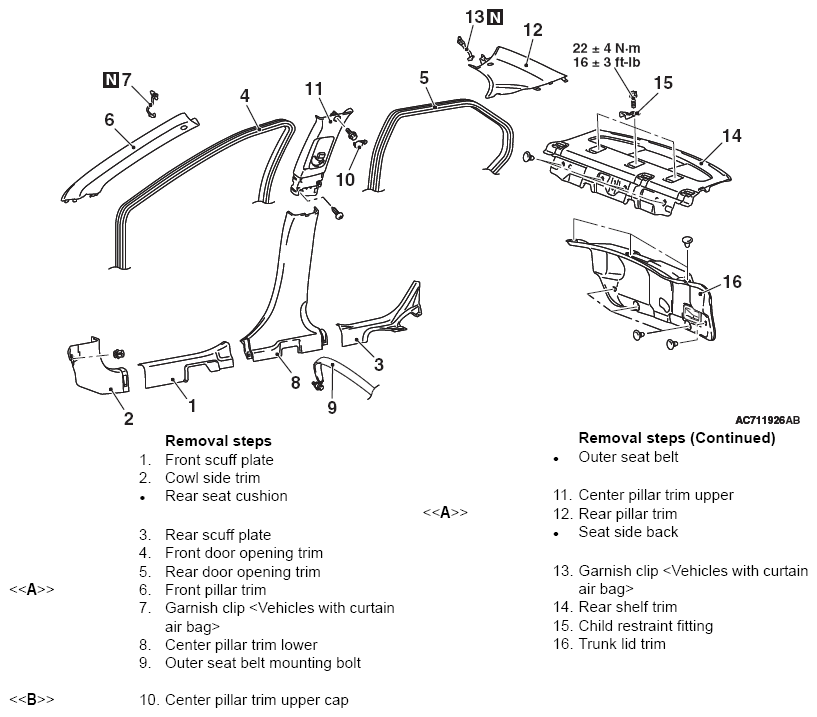

Fig 1: Removal & Installation Of Trims With Torque Specifications
G06677979Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
