Shift Lock Mechanism Check

SHIFT LOCK MECHANISM CHECK

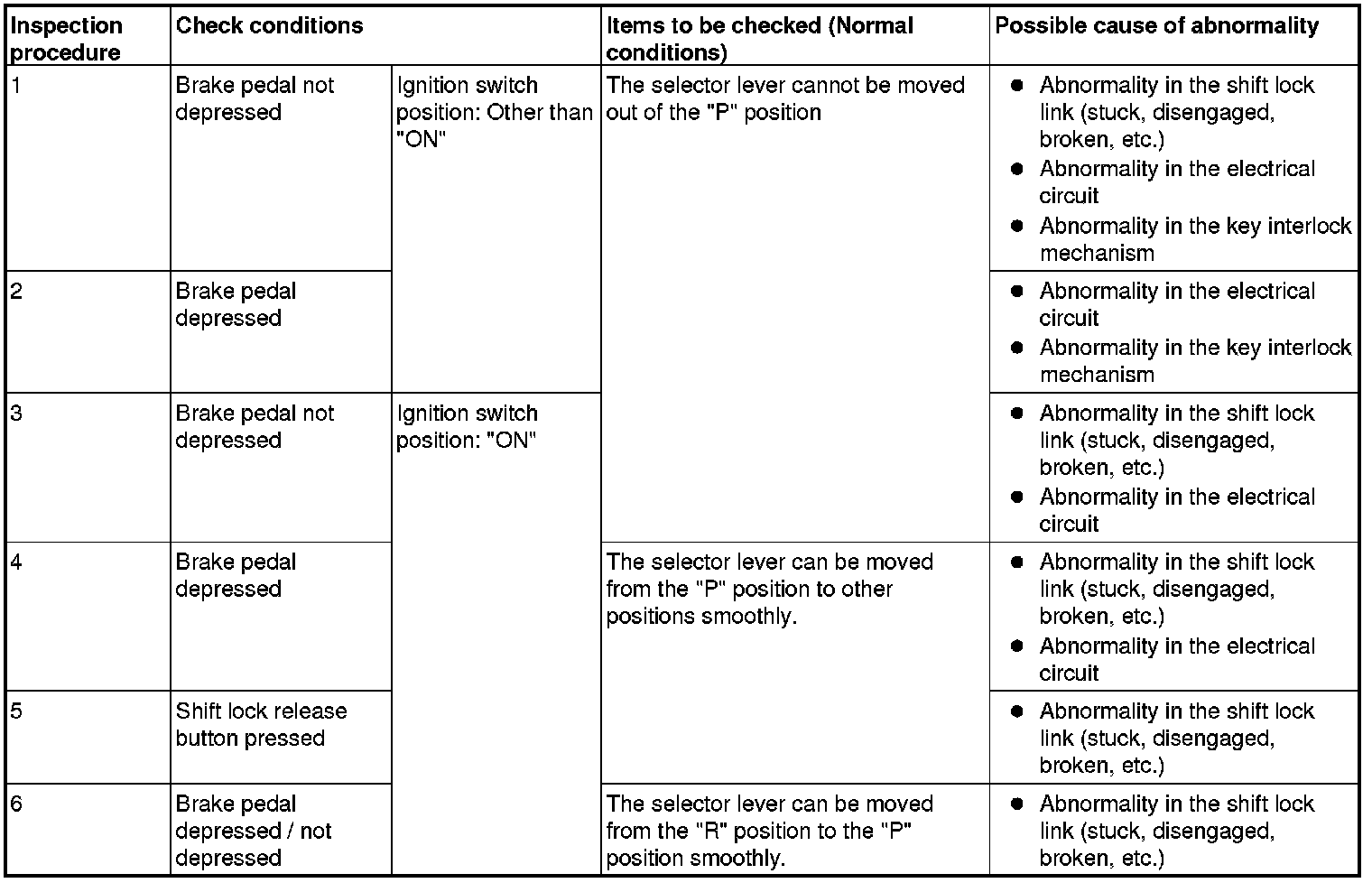

SYSTEM CHECK





COMPONENT PARTS CHECK

SHIFT LOCK LINK





Check each part for damage and disengagement.

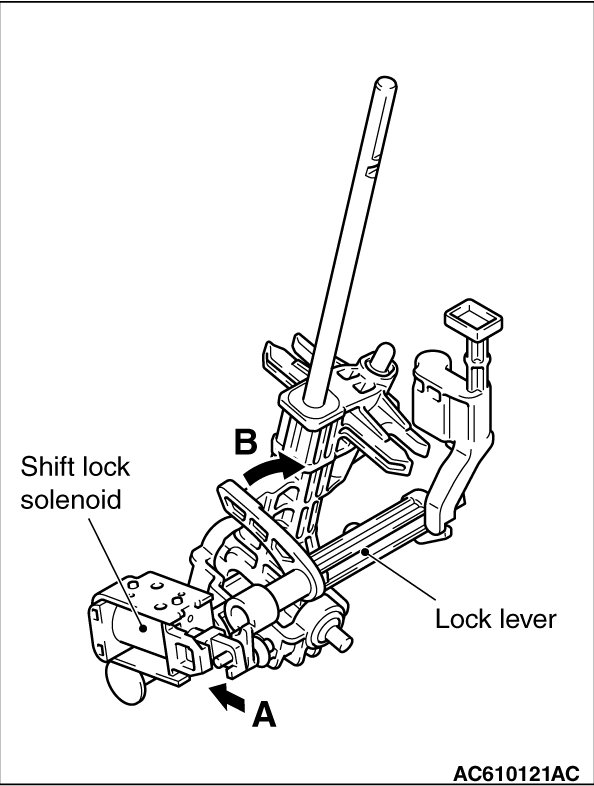

Check that the lock lever smoothly moves in the direction of arrow B in the figure when the shift lock solenoid plunger is pressed in the direction of arrow A, and smoothly moves back to the original position when the plunger is released.

SHIFT LOCK SOLENOID

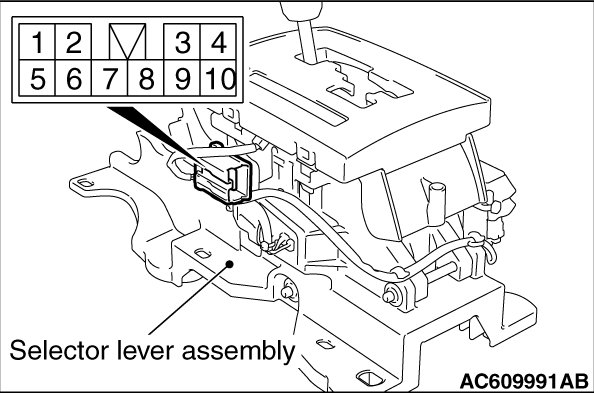

1. Measure the resistance between terminal No.3 and No.7 of the selector lever assembly connector.
Standard value: 24 ± 1.2 ohms
2. When the resistance is outside the standard value, replace the selector lever assembly.
