Removal And Installation: Notes

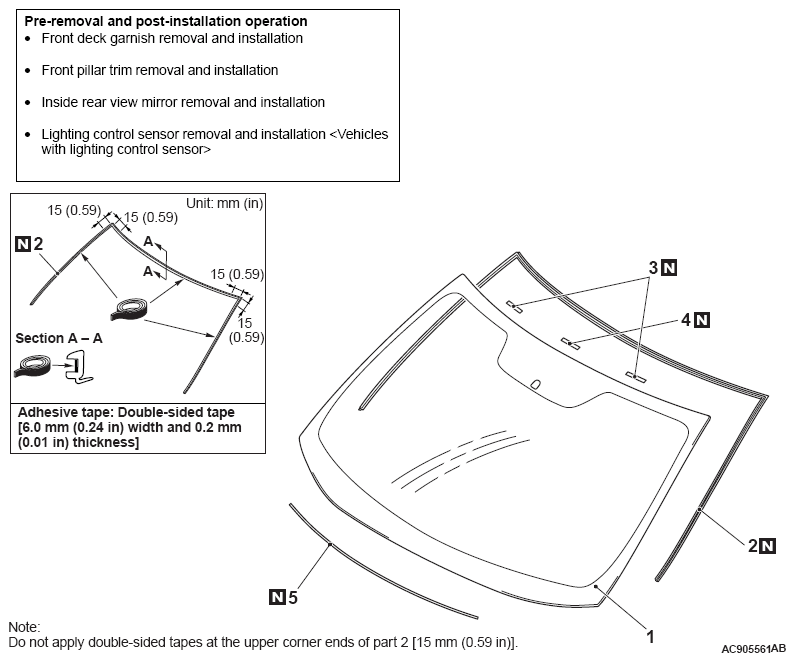

Fig 1: Identifying Windshield Remove/Install Components (1 Of 2)
G07048579Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

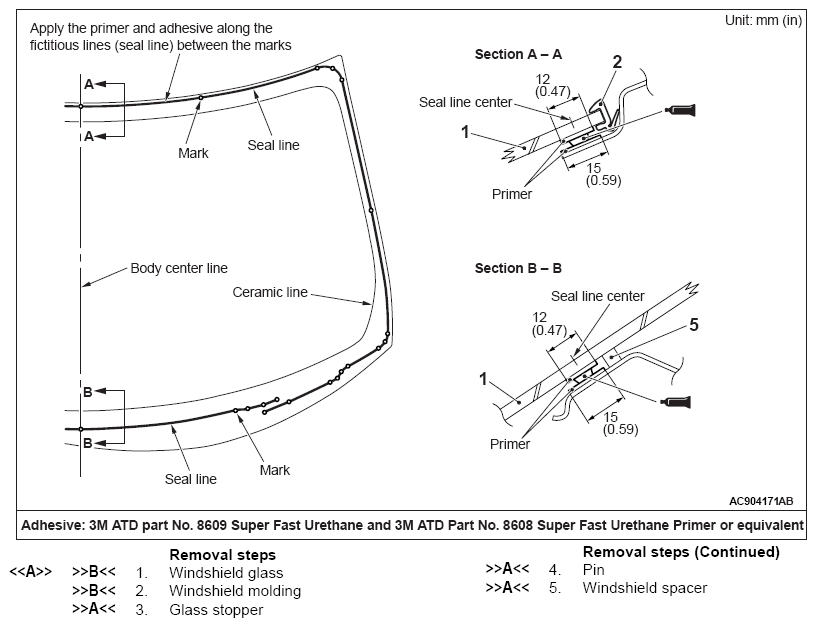

Fig 2: Identifying Windshield Remove/Install Components (2 Of 2)
G07048580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
