Removal And Installation: Notes

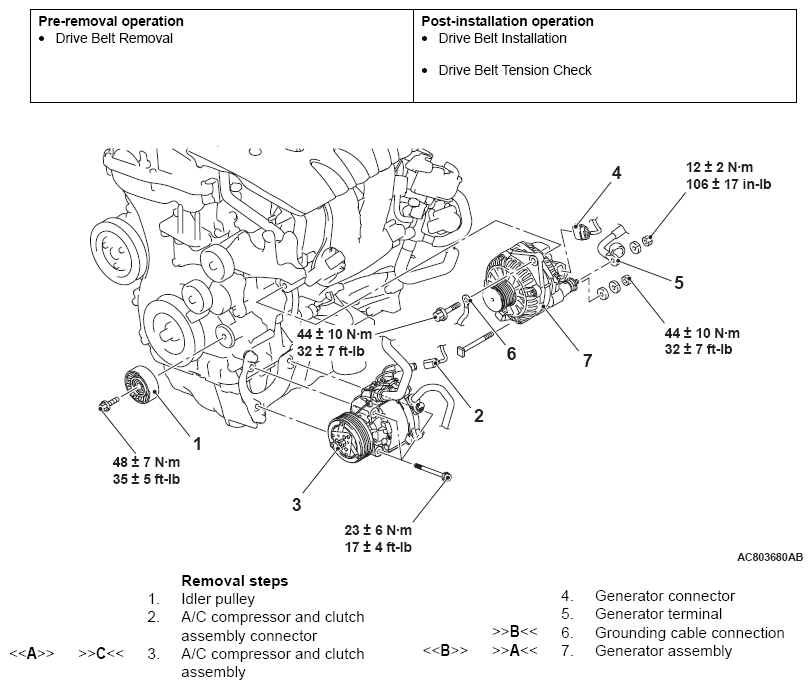

Fig 1: Generator Assembly Replacement Components With Torque Specifications
G07047270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
