Disassembly And Assembly: Notes

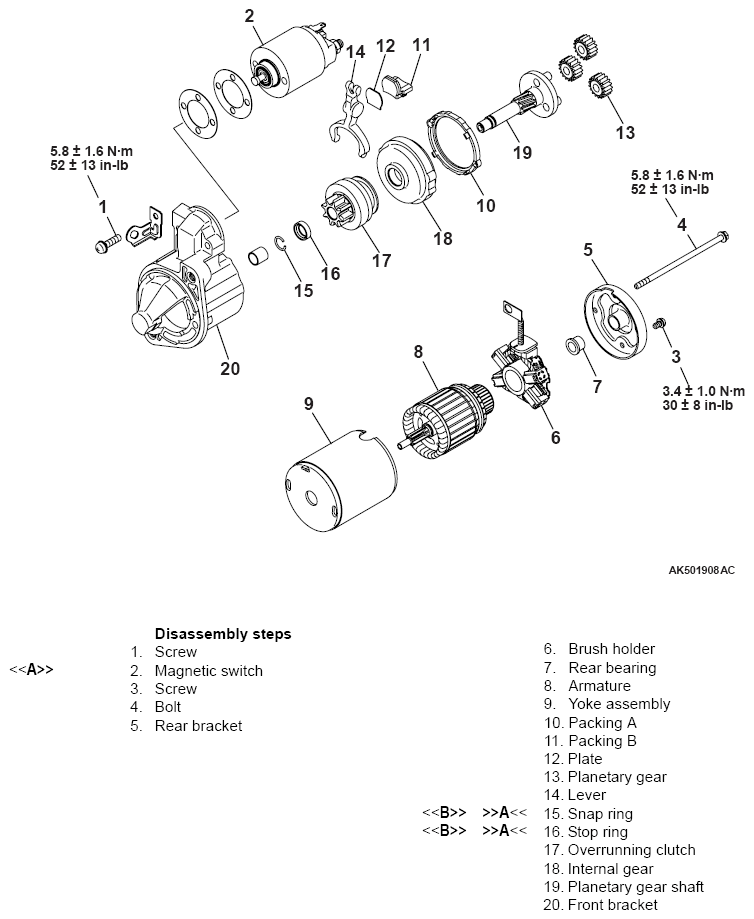

Fig 1: Starter Disassembly/Assembly Replacement Components With Torque Specifications
G07047306Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
