Removal And Installation: Notes

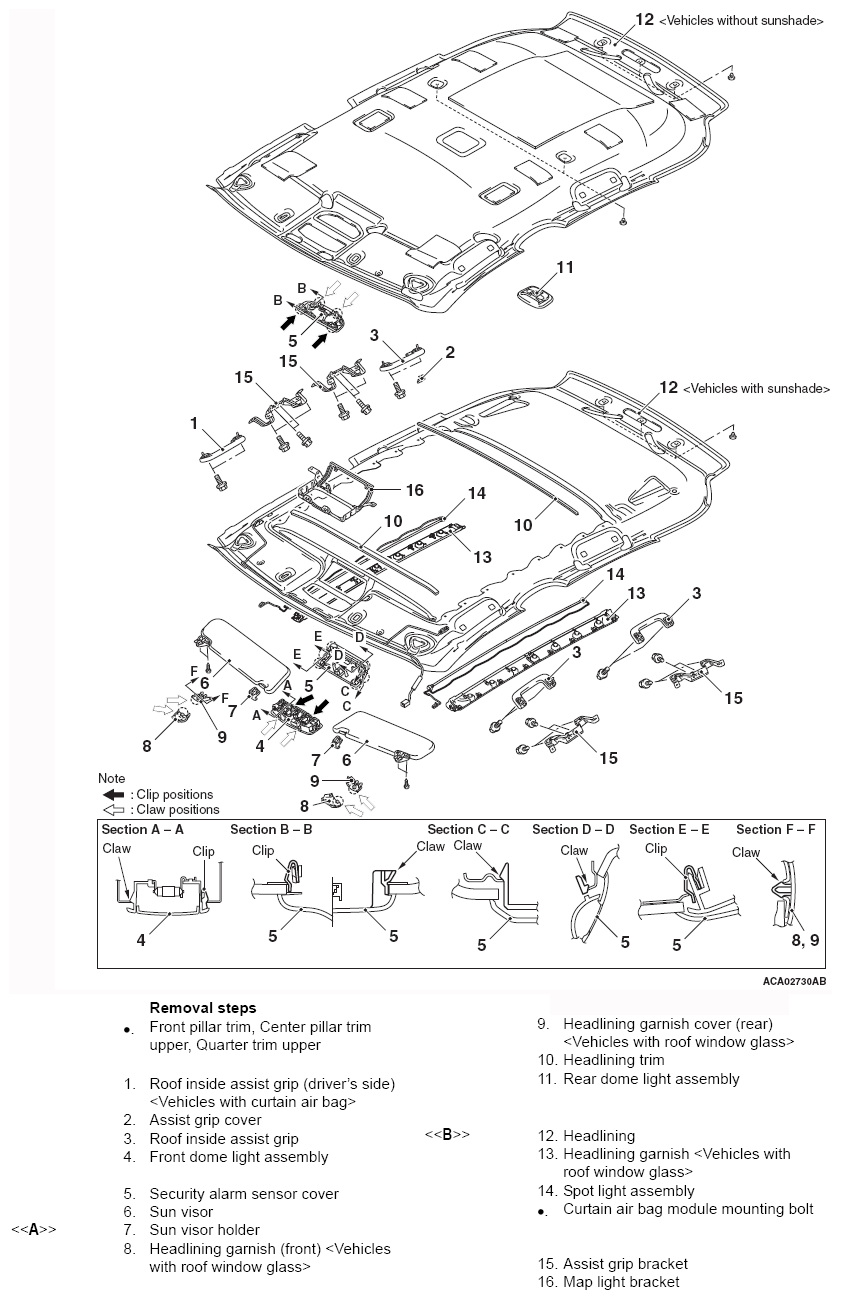

Fig 1: Identifying Headlining Remove/Install Components
G07049318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
