Windshield Wiper Switch Connector End View

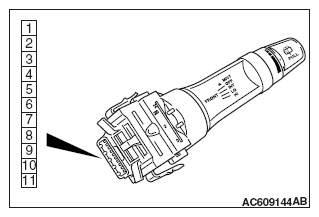

Fig 1: Windshield Wiper Switch Connector End View
G08303372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
