Removal And Installation: Notes

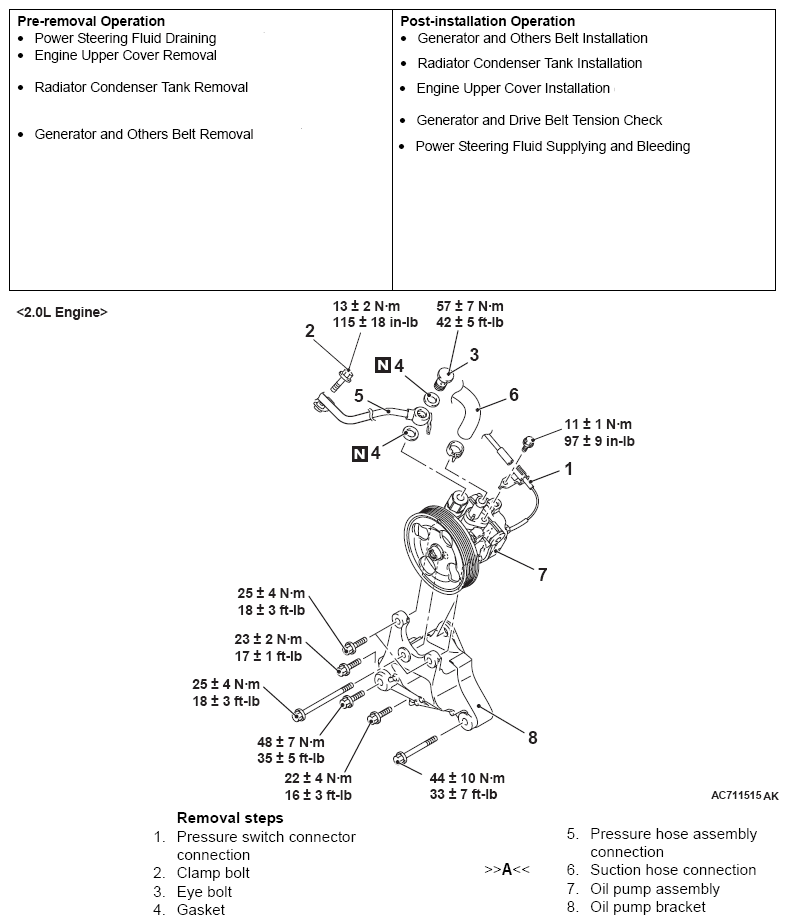

Fig 1: Power Steering Oil Pump Assembly Components With Torque Specifications (2.0L Engine)
G08294227Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

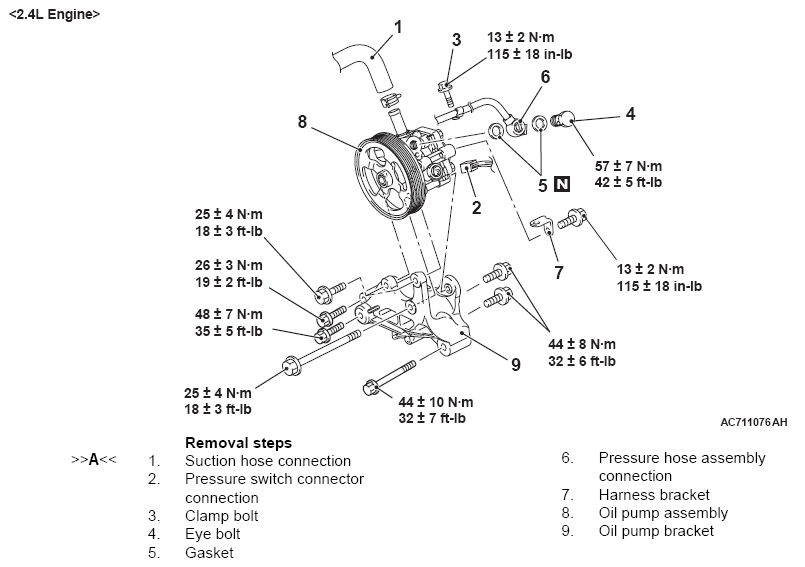

Fig 2: Power Steering Oil Pump Assembly Components With Torque Specifications (2.4L Engine)
G08294228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
