General Information: Structure

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

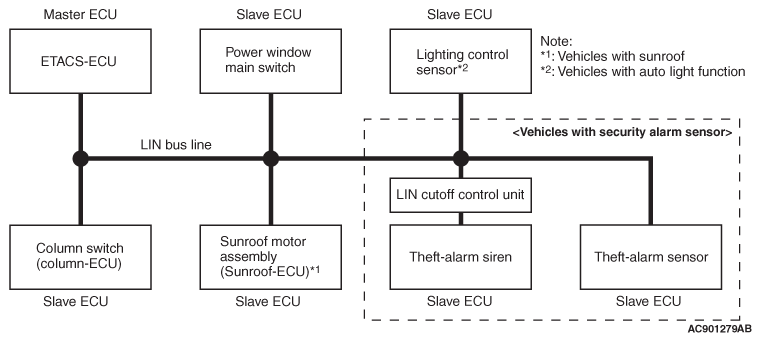

Fig 1: Structure Of Local Interconnect Network (LIN)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Master and slave ECUs are connected to the LIN bus lines. The master ECU is the ETACS^*1 -ECU, and the slave ECUs are the column switch (column-ECU), the sunroof motor assembly (sunroof-ECU)^*2 , the lighting control sensor^*3 , the power window main switch, the theft-alarm siren (via LIN cutoff control unit^*4 )^*5 and the theft-alarm siren^*5 . The master ECU requests these slave ECUs to communicate each other via communication lines.

NOTE:

^*1 : ETACS (Electronic Time and Alarm Control System)
^*2 : Vehicles with sunroof
^*3 : Vehicles with lighting control sensor
^*4 : The LIN cutoff control unit is a relay circuit to turn ON/OFF the LIN communication of theft-alarm siren. An ECU is not incorporated in the LIN cutoff control unit.
^*5 : Vehicles with theft-alarm sensor
