REMOVAL AND INSTALLATION - 3.0L Engine: Notes

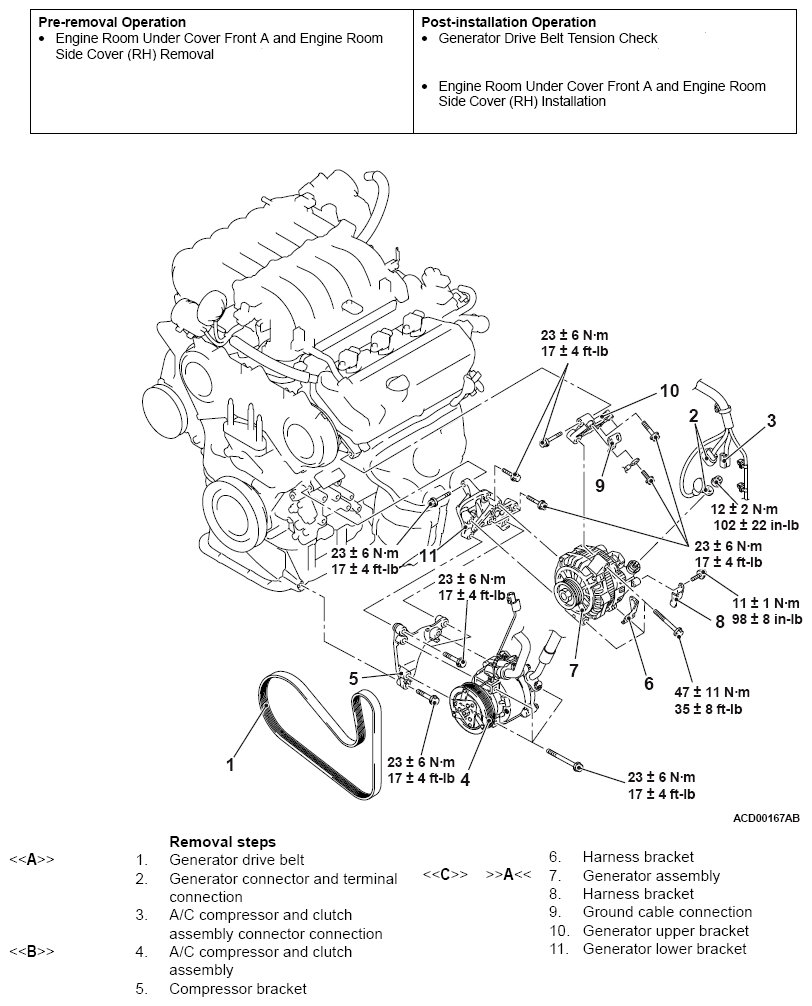

Fig 1: Removing/Installing Charging System With Torque Specification - 3.0L Engine
G09664712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
