>> A << Brake Hose Installation
WARNING: This page is about a different variant/trim than selected.
- Pass the brake hose through the hole in the body-side bracket.
- Install the brake hose to the brake caliper.
- Install the brake hose at the two fixing points.

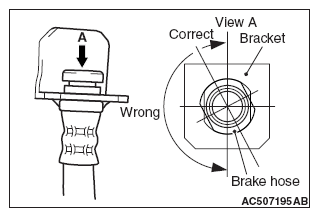

- Twist the brake hose toward the lesser torsion between the brake hose and body-side bracket as shown in the illustration, and fix it to the body-side bracket with a clip.
