<< A >> Front Brake Disc Removal

WARNING: This page is about a different variant/trim than selected.

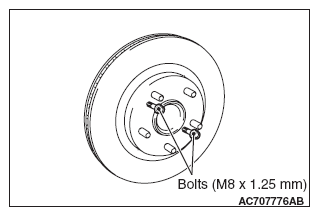

If the front brake disc removal is difficult, install bolts (M8 x 1.25 mm) shown in the illustration, and tighten them evenly and gradually to remove the front brake disc.

Fig 1: Brake Disc Removal Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
