Starter Relay Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 4 - 3 Open circuit
Connect terminal number 2 and battery (+) terminal.
Connect terminal number 1 and battery (-) terminal.		 Continuity (Less than 2 ohms)

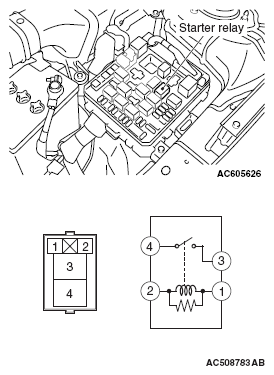

Fig 1: Identifying Starter Relay
G05903669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
