Spark Plug Gap Check

Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.

Standard value: 0.5 - 0.6 mm (0.020 - 0.023 inch)

Limit: 0.8 mm (0.031 inch)

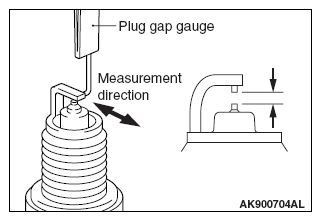

Fig 1: Adjusting Spark Plug Gap

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
