Removal And Installation: Notes

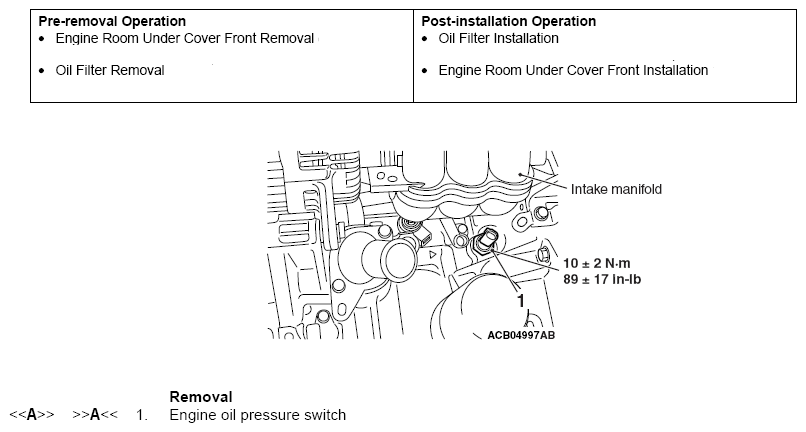

Fig 1: Removing/Installing Engine Oil Pressure Switch And Mounting Bolt With Torque Specification
G09628465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
