REMOVAL AND INSTALLATION (3.0 L Engine)
Pre-removal operation
Engine Room Side Cover (RH) Removal (Refer to
REMOVAL AND INSTALLATION
).
Driveshaft Assembly (RH) Removal < Vehicles with S-AWC > (Refer to
DRIVESHAFT ASSEMBLY
).
Post-installation operation
Driveshaft Assembly (RH) Installation < Vehicles with S-AWC > (Refer to
DRIVESHAFT ASSEMBLY
).
Engine Room Side Cover (RH) Installation (Refer to
REMOVAL AND INSTALLATION
).

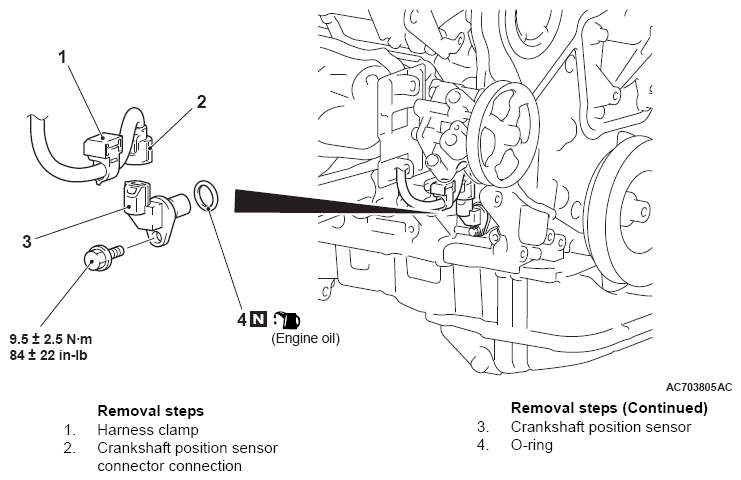

Fig 1: Removing/Installing Engine Electrical System Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
