LOGIC FLOW CHARTS (Monitor Sequence-Input Open Circuit)

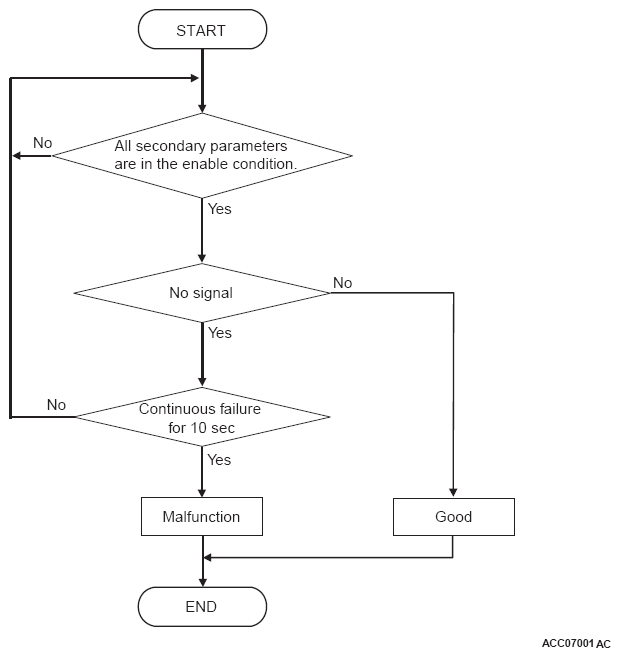

Fig 1: Logic Flow Charts (Monitor Sequence-Input Open Circuit)
G11739294Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
