Paddle Shift Switch Check

  1. Check the continuity between the paddle shift switch connector terminals.

    Standard value:

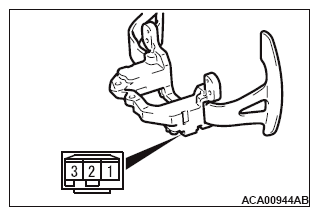

    Fig 1: Paddle Shift Switch Connector Terminals
    G10230109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Paddle shift lever Terminal number Resistance value
    Upshift and hold the lever. 2 - 3 Continuity exists (2 Ω or less).
    Downshift and hold the lever. 1 - 2
    No operation No continuity between the terminals.
  2. In the cases other than the above, replace the paddle shift assembly.
