<<E>> Engine Assembly Holding

Tighten the engine hanger plate (special tool: MB992853) to the specified torque at A in the figure (injector protector rear mounting bolt) and B in the figure (vacuum pipe assembly mounting bolt).
Tightening torque: 20 ± 2 N-m (15 ± 1 ft-lb) (A in the figure)

Tightening torque: 11 ± 1 N-m (98 ± 8 in-lb) (B in the figure)

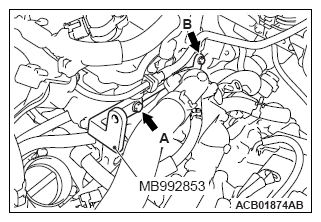

Fig 1: Tightening Engine Hanger Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Assemble the engine hanger (special tool: MB991527) with the chain of the engine hanger balancer (special tool: MB991454).

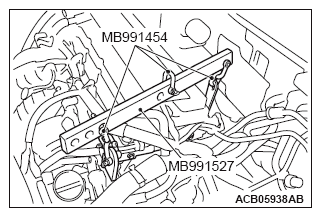

Fig 2: Assembling Engine Hanger With Chain Of Engine Hanger Balancer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the foot of special tool engine hanger (MB991895) as shown in the figure.
NOTE: Slide the front foot of special tool engine hanger attachment (Special tool: MB992906) to balance the engine hanger.

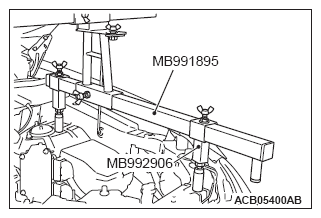

Fig 3: Setting Foot Of Special Tool Engine Hanger
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect the engine hanger (Special tool: MB991895) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

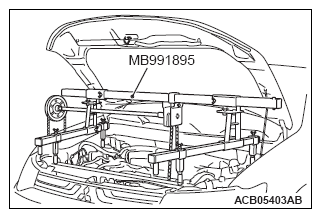

Fig 4: Connecting Engine Hanger
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
