Disassembly And Assembly: Notes

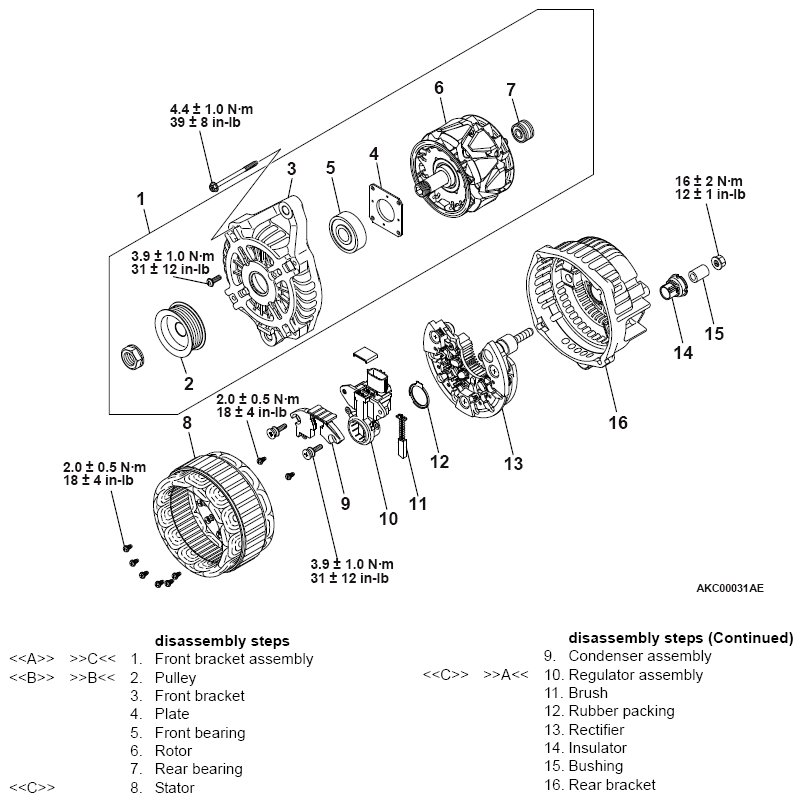

Fig 1: Exploded View Of Generator Assembly With Torque Specifications
G10229645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
