Rectifier Assembly

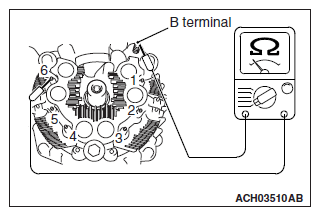

Inspection of the (+) diode
- Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.
If there is, replace the generator assembly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measured terminal No. Continuity 1 - B terminal Continuity exists. 2 - B terminal 3 - B terminal 4 - B terminal 5 - B terminal 6 - B terminal B terminal - 1 No continuity B terminal - 2 B terminal - 3 B terminal - 4 B terminal - 5 B terminal - 6

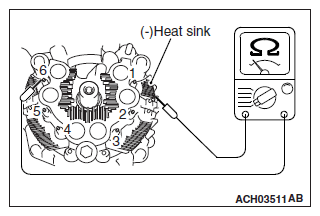

Inspection of the (-) diode
- Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.
If there is, replace the generator assembly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measured terminal No. Continuity (-) Heat sink - 1 Continuity exists. (-) Heat sink - 2 (-) Heat sink - 3 (-) Heat sink - 4 (-) Heat sink - 5 (-) Heat sink - 6 1 - (-) Heat sink No continuity 2 - (-) Heat sink 3 - (-) Heat sink 4 - (-) Heat sink 5 - (-) Heat sink 6 - (-) Heat sink
