Component Locations: Grounding

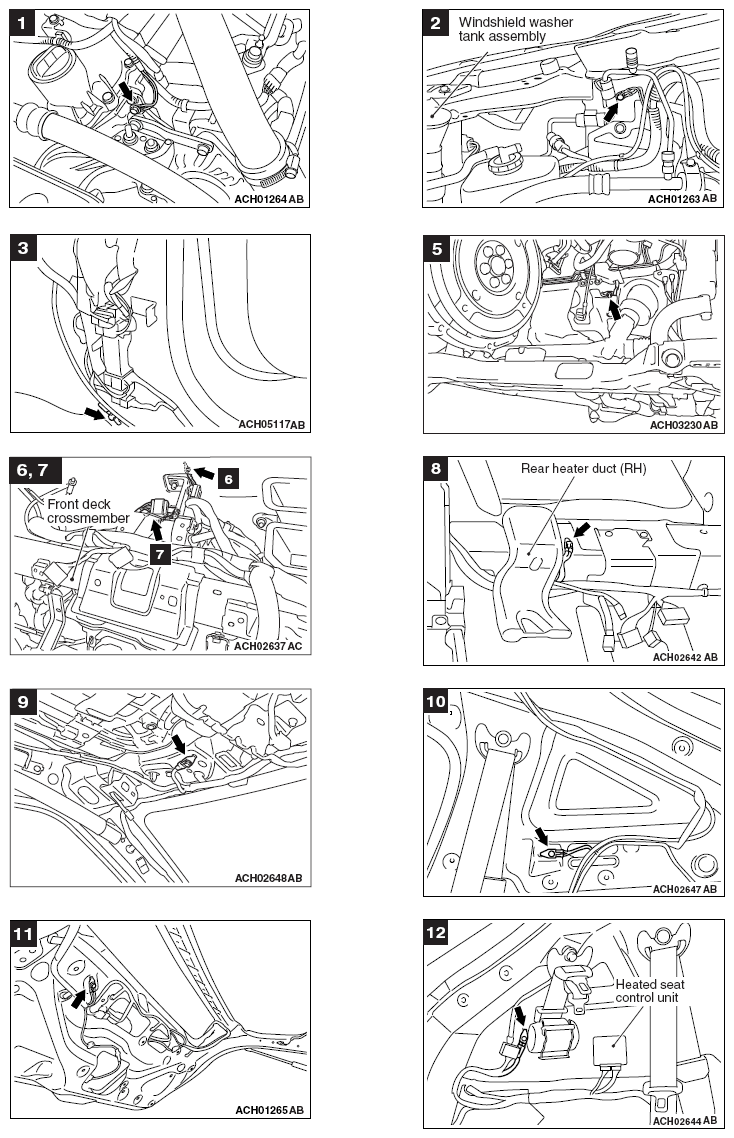

Fig 1: Grounding Wiring Harness Connector Component Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Same ground point numbers are used in the circuit diagram.

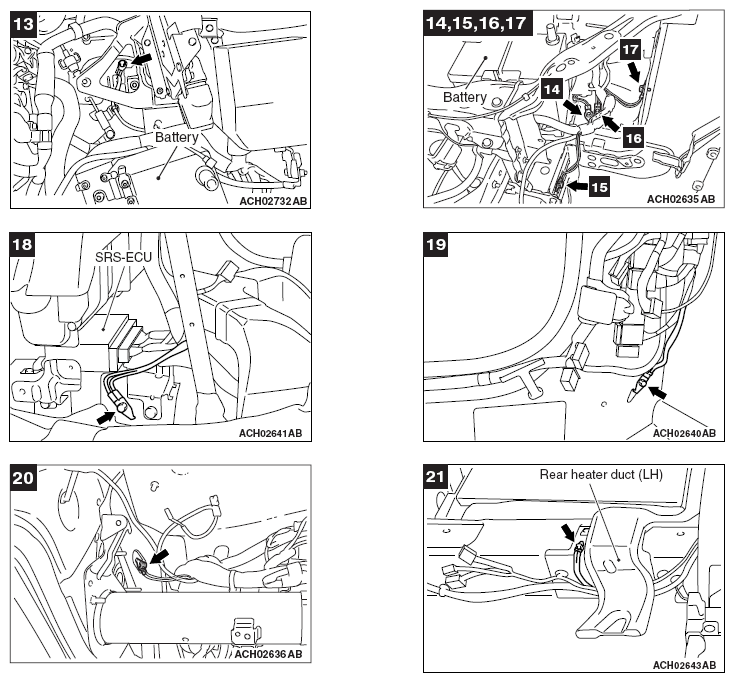

Fig 2: Grounding Wiring Harness Connector Component Locations (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Grounding Wiring Harness Connector Component Locations (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
