Removal And Installation: Notes

CAUTION:
  • The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
  • *2 indicates a bolt with stabilizer for coefficient of friction. When you tighten it, note the following:
    • Check the bolt for any damage.
    • Clean the seating and thread of the bolt.
    • Observe the specified torque.
Pre-removal Operation
Cargo Floor Box Removal (Refer to INTERIOR TRIM ).		 Post-installation Operation
  • Cargo Floor Box Installation

    (Refer to INTERIOR TRIM ).

  • Check the Dust Cover for Cracks or Damage by Pushing it with Your Finger.
  • Check the Beam Direction of the Headlight (Low Beam) (Refer to HEADLIGHT AIMING ).

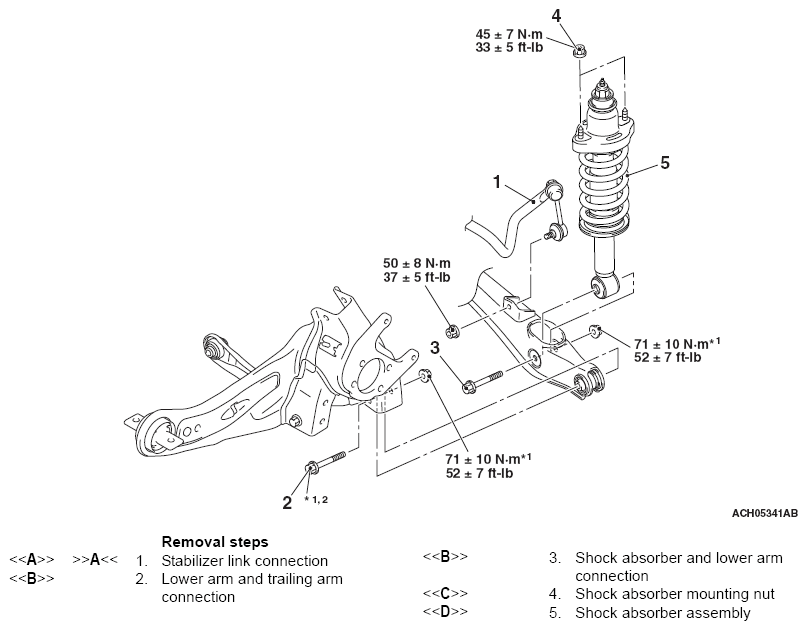

Fig 1: Removing/Installing Shock Absorber Assembly Components With Torque Specification
G12649310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
