Removal And Installation: Notes

Post-installation Operation

Check the Dust Cover for Cracks or Damage by Pushing it with Your Finger.

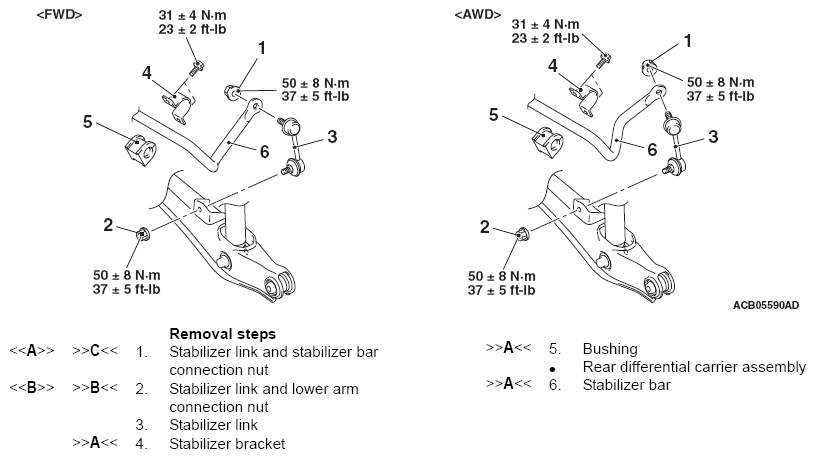

Fig 1: Removing/Installing Stabilizer Bar Components With Torque Specification
G12649322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
