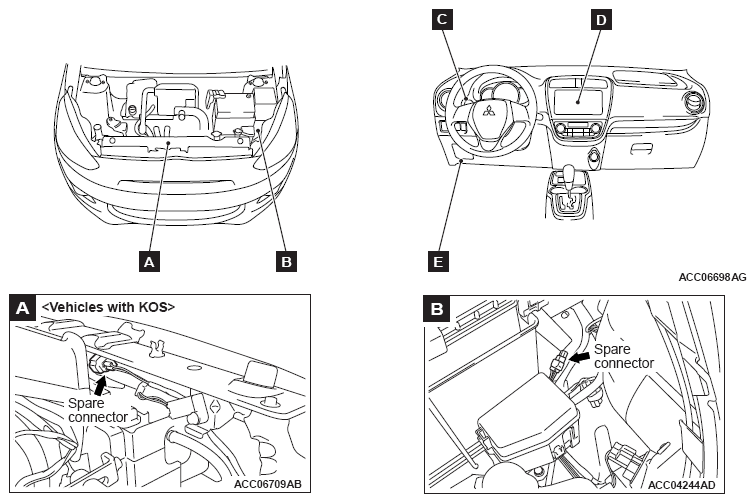

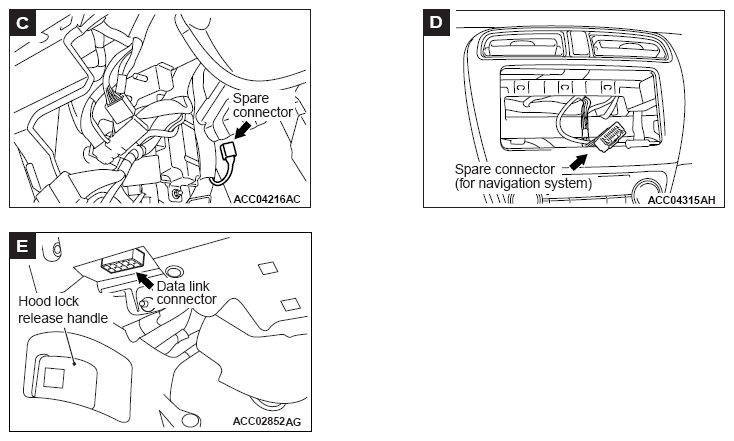

Inspection Terminal And Spare Connector
| Name |
Symbol |
Name |
Symbol |
| Data link connector |
E |
Spare connector (for navigation system) |
D |
| Spare connector |
B |
Spare connector <Vehicles with KOS> |
A |
| Spare connector |
C |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
