Smartphone Link Display Audio System

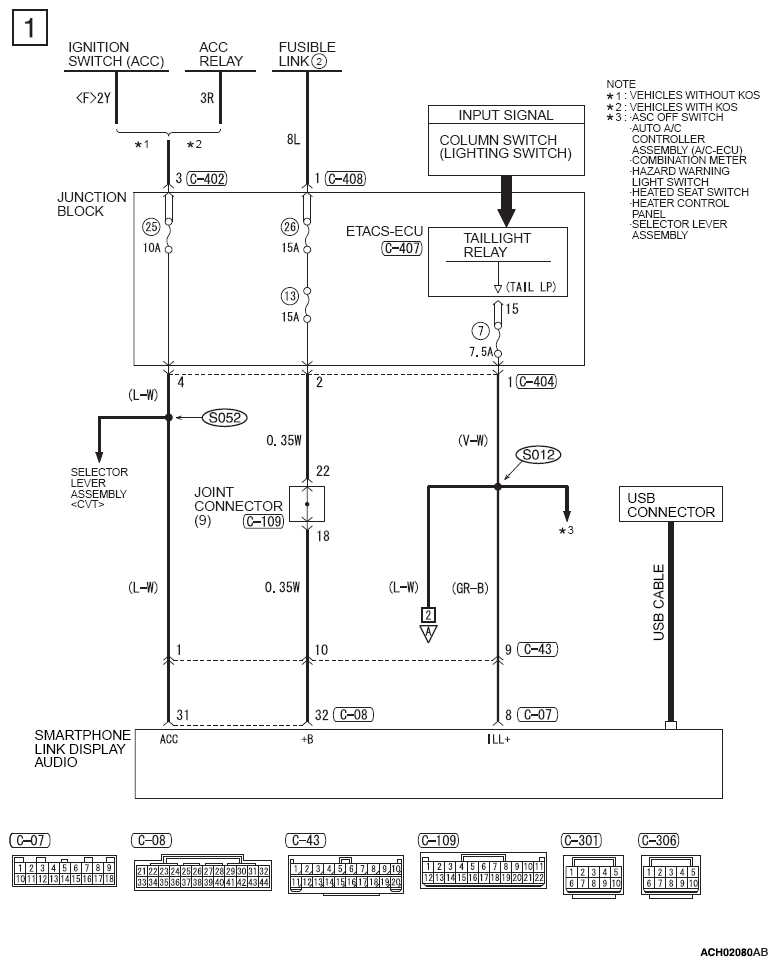

G12366402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

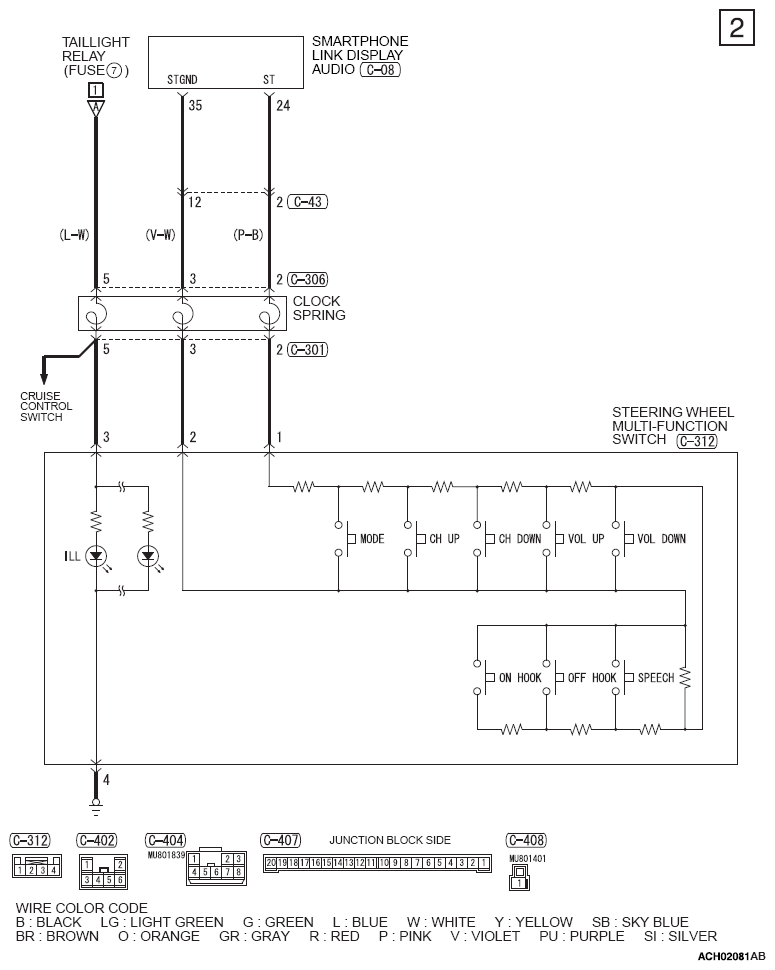

G12366403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

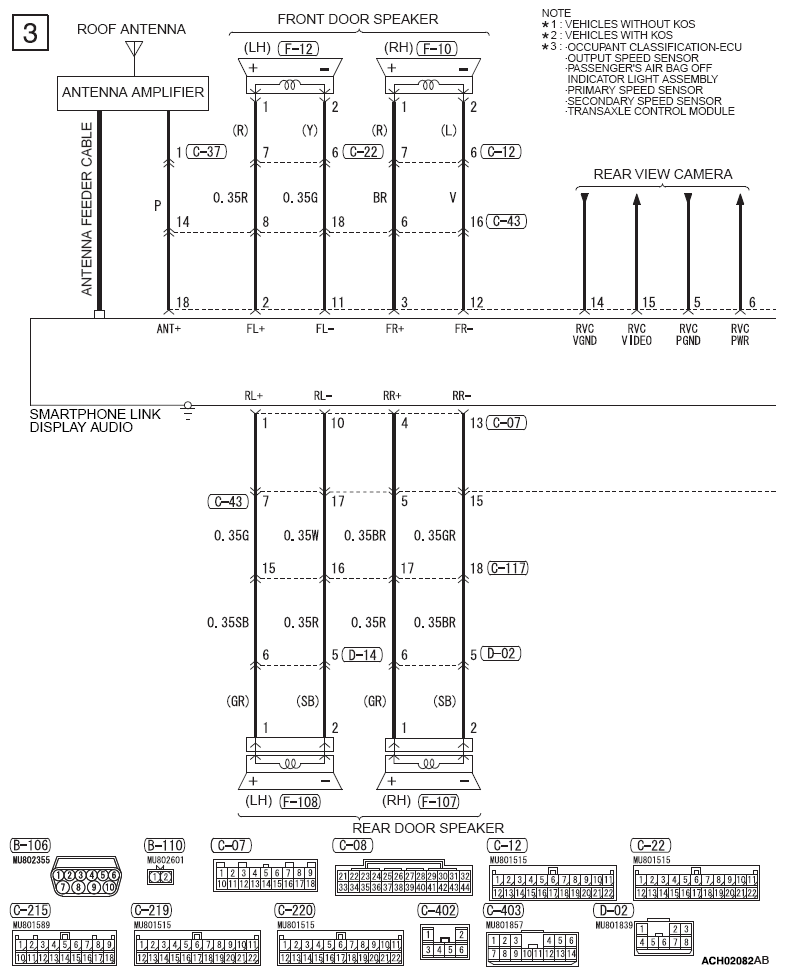

G12366404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

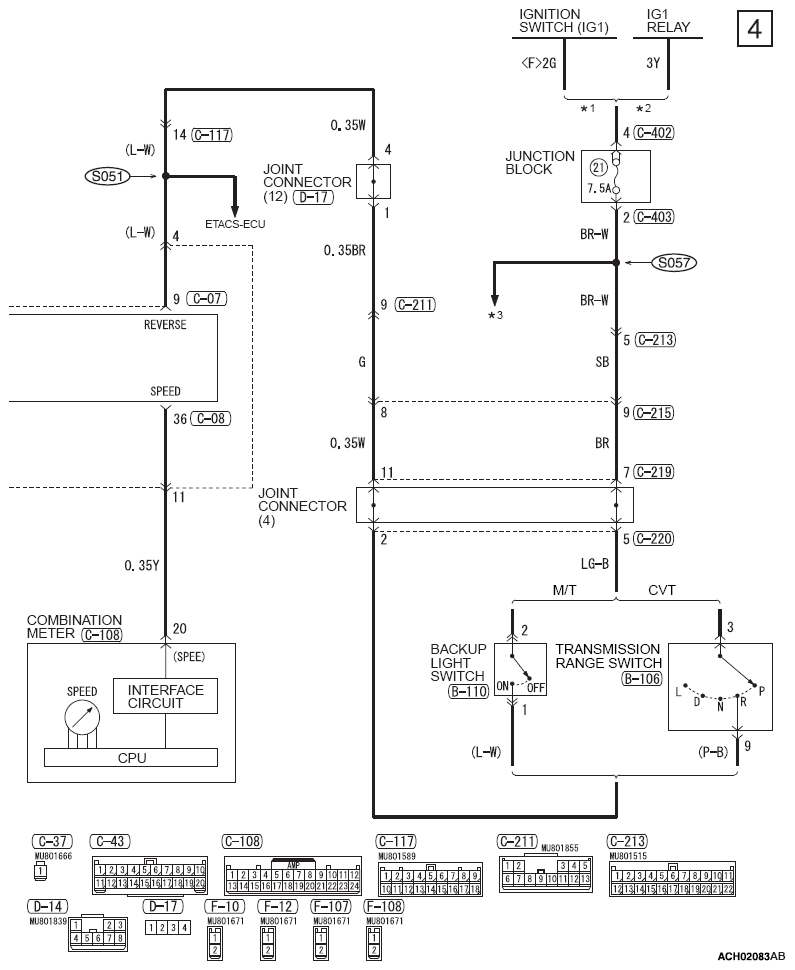

G12366405Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

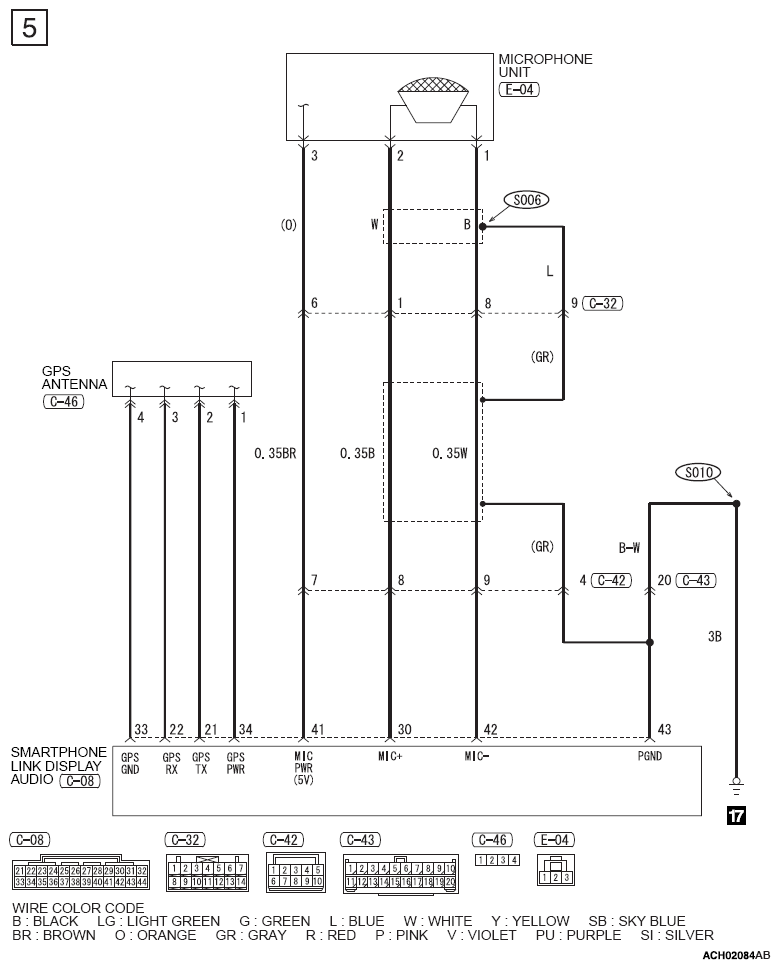

G12366406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
