Disassembly And Reassembly

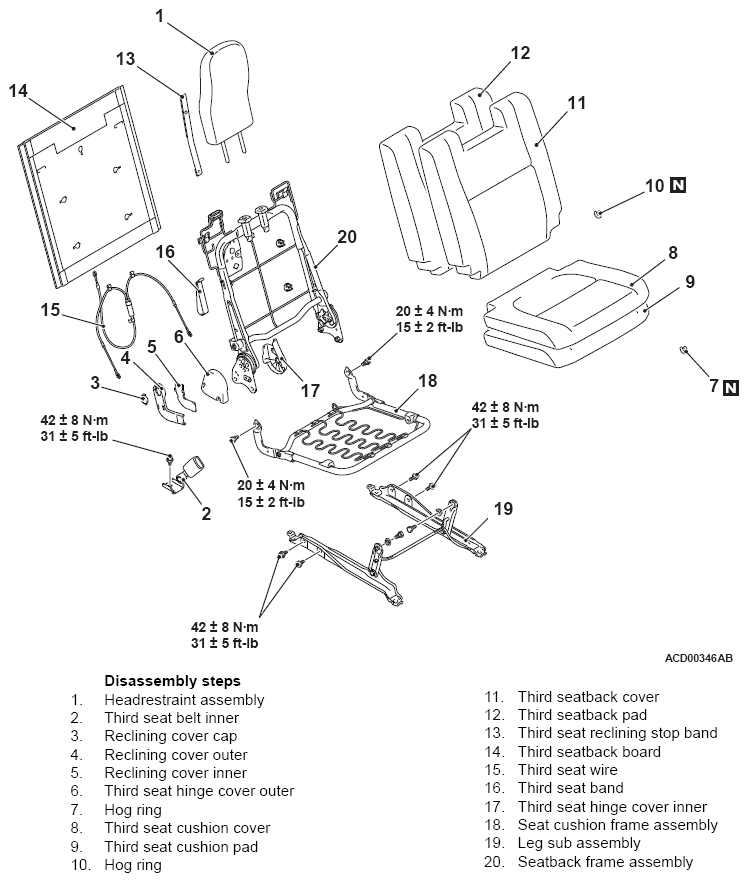

Fig 1: Disassembling/Assembling Third Seat Assembly Components With Torque Specification
G13090189Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
