Inspection Procedure 1: The sunshade does not work: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

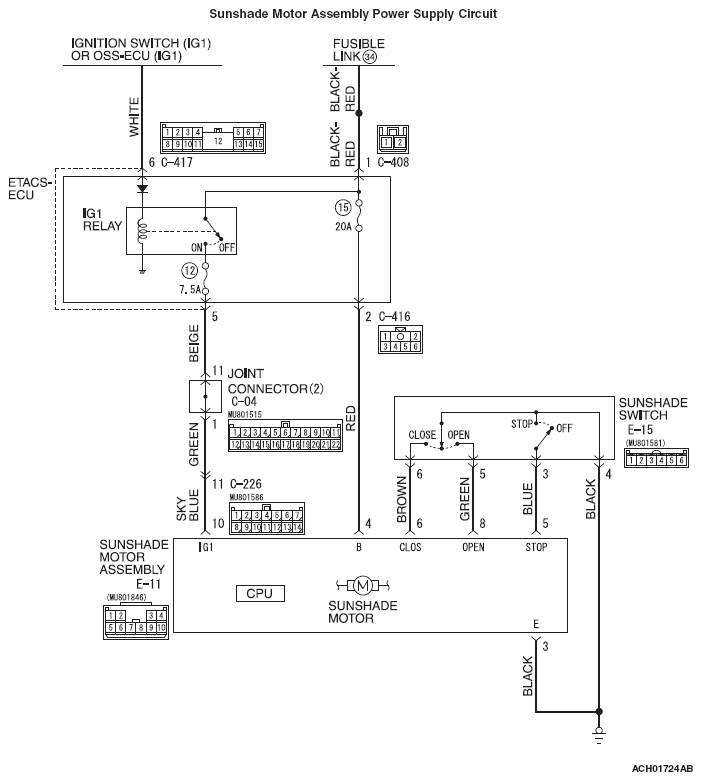

G12678241Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

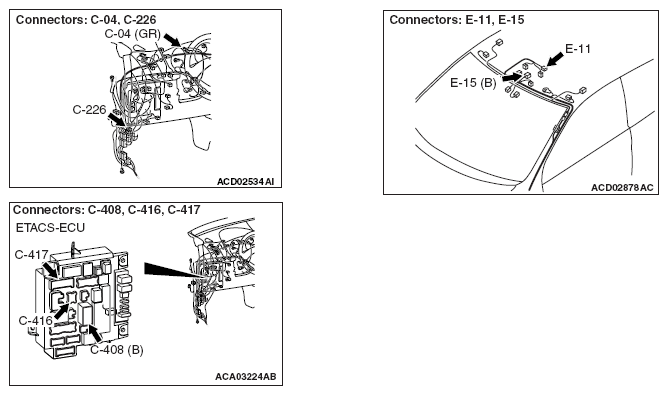

G12678242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
