Removal And Installation: Notes

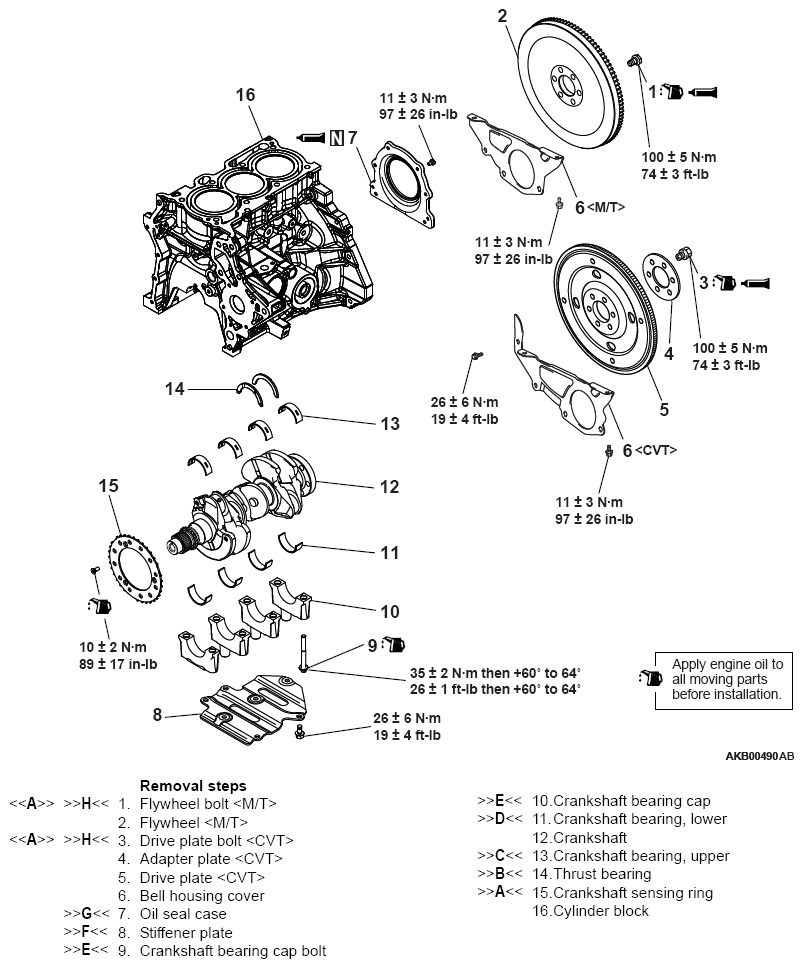

Fig 1: Removing/Installing Crankshaft And Cylinder Block Components With Torque Specification
G13254185Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
