Removal And Installation: Notes

CAUTION: Never remove the accelerator pedal cover and connector. If the accelerator pedal cover removed, the accelerator pedal position sensor does not work normally.

Pre-removal and post-installation operation

Instrument Panel Lower Cover Removal and Installation (Refer to INSTRUMENT LOWER PANEL ).

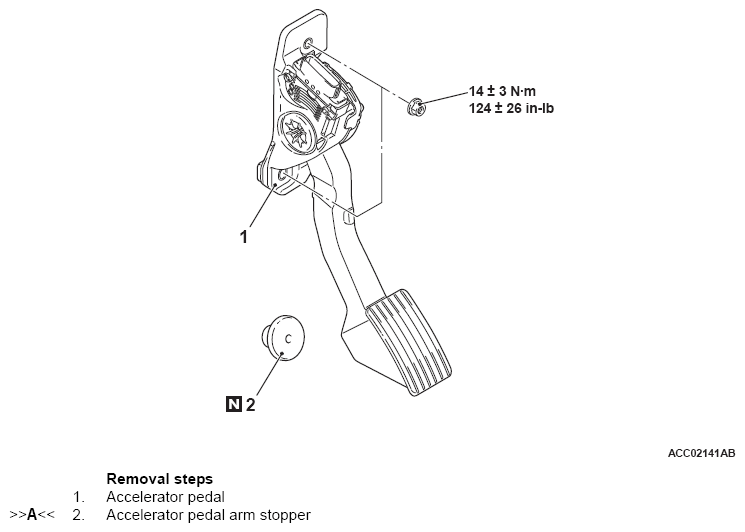

Fig 1: Removing/Installing Accelerator Pedal Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
