<<A>> Column Switch Assembly/Clock Spring Removal
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The removed clock spring should be stored in a clean, dry place.

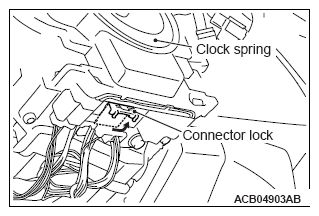

- Lift the connector lock of clock spring connector to the direction of the arrow, then unlock and disconnect the connector.
- Using a pliers or similar tool, pinch and lift the band clump pin shown in the figure.

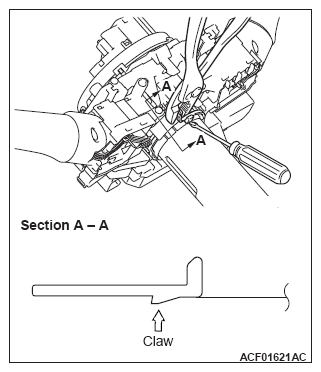

- With the flat-tipped screwdriver inserted into the column shaft groove shown in the figure, lift the claw shown in Section A - A, and then remove the column switch assembly by pulling out the column switch assembly.
