Ignition System
>>
General Information
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

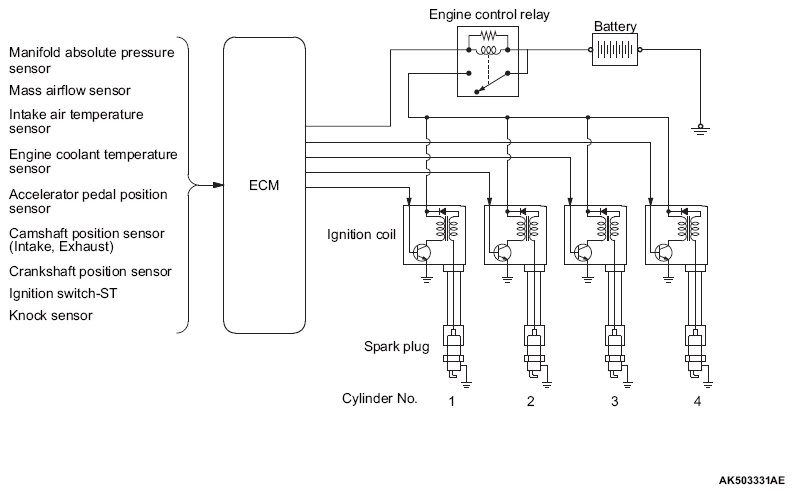

System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
