Removal And Installation

Pre-removal and post-installation operation

• Instrument Panel Cover Lower Removal and Installation Refer to INSTRUMENT LOWER PANEL ).

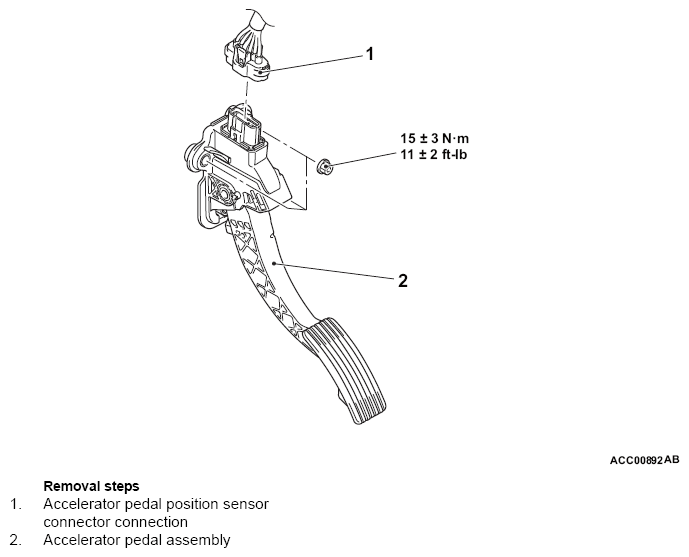

Fig 1: Removing/Installing Accelerator Pedal Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
