Removal And Installation: Notes

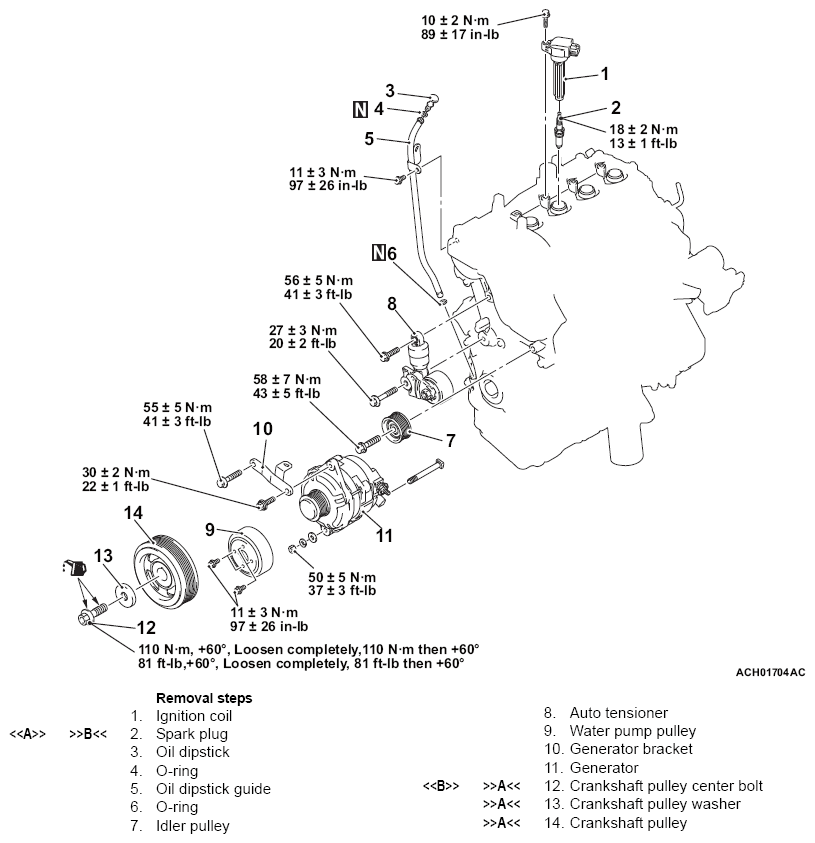

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991398: Spark plug wrench
• MB991883: Flywheel stopper
