Removal And Installation: Notes

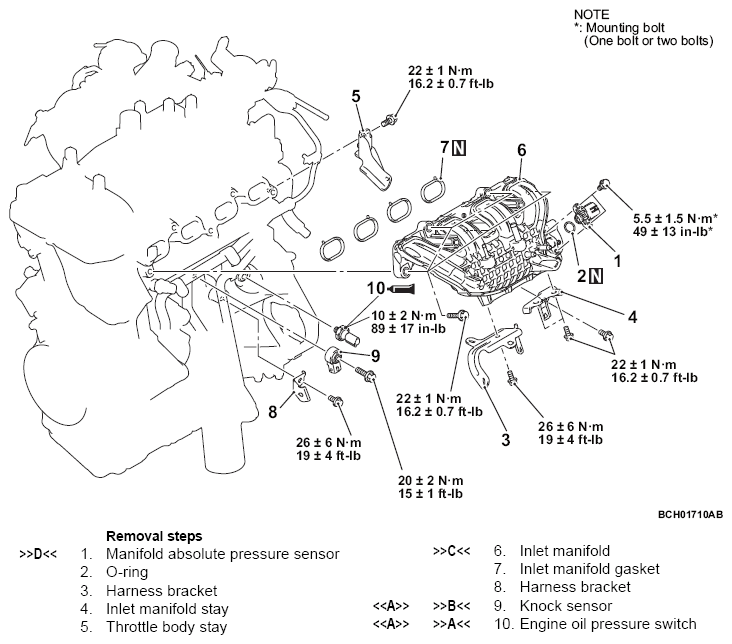

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification
G16248877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
