Exploded View

SEC. 233

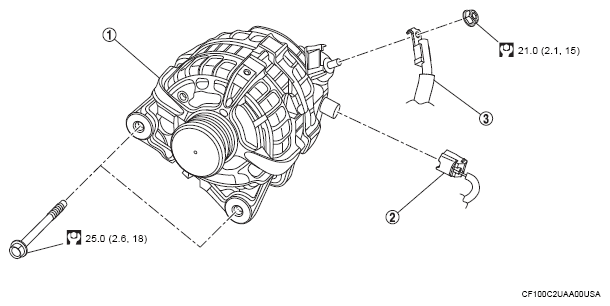

Fig 1: Removing/Installing Generator Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Generator
(2)	Generator harness connector
(3)	"B" terminal
:	N.m (kg-m, ft-lb)
