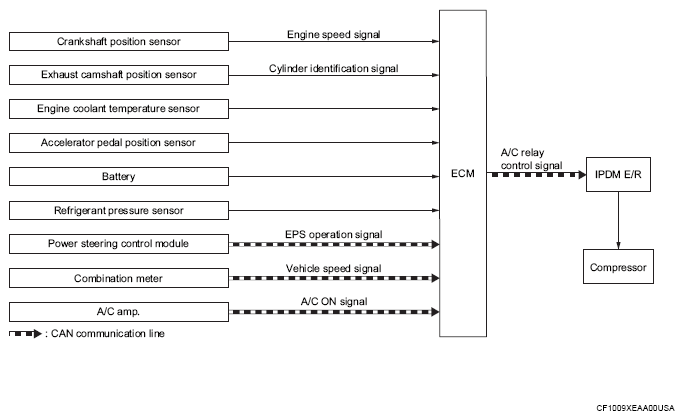

System Diagram
| Component parts | Function |
|---|---|
| Crankshaft position sensor | CRANKSHAFT POSITION SENSOR . |
| Exhaust camshaft position sensor | EXHAUST CAMSHAFT POSITION SENSOR . |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR . |
| Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR . |
| Battery | ECM receives the battery voltage signal. |
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR . |
| Power steering control module | ECM receives the EPS operation signal via CAN communication. |
| Combination meter | ECM receives the vehicle speed signal via CAN communication. |
| A/C amp. | ECM receives the A/C ON signal via CAN communication. |
| ECM | ECM . |
| IPDM E/R | ECM transmits the compressor control signal via CAN communication. |
| Compressor | AUTOMATIC AIR CONDITIONER A/C COMPRESSOR
. MANUAL AIR CONDITIONER A/C COMPRESSOR . |
