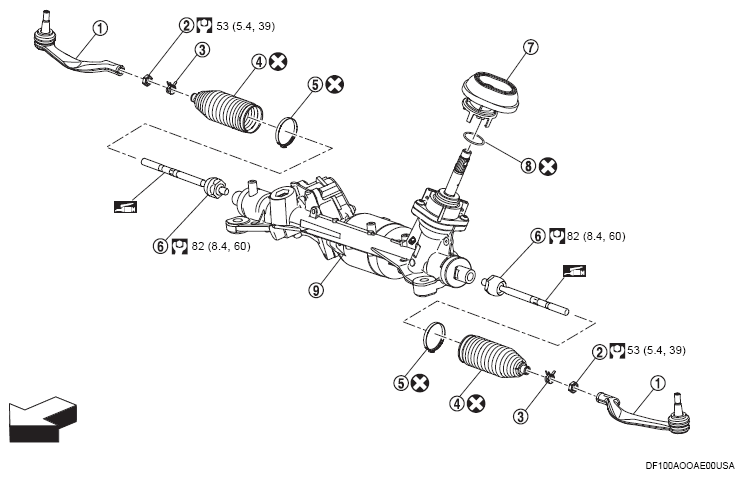

Exploded View: Disassembly
| (1) | Outer socket |
| (2) | Outer socket lock nut |
| (3) | Boot clamp (small diameter) |
| (4) | Boot |
| (5) | Boot clamp (large diameter) |
| (6) | Inner socket |
| (7) | Fire wall seal |
| (8) | O-ring |
| (9) | Gear housing assembly |
| : N.m (kg-m, ft-lb) | |
| : Apply Dow corning 111 or equivalent . | |
| : Always replace after every disassembly . |
CAUTION:
Never apply the grease to the surface between steering rack and inner socket screw part.
