Removal And Installation

Pre-removal and post-installation operation

Instrument Panel Cover Lower Removal and Installation
(Refer to INSTRUMENT LOWER PANEL ).

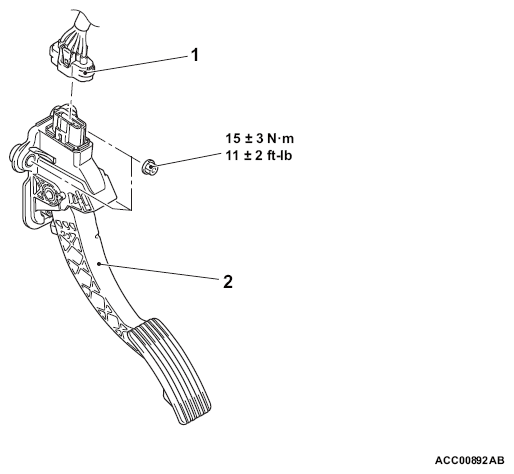

Fig 1: Removing/Installing Accelerator Pedal Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
1.	Accelerator pedal position sensor connector connection
2.	Accelerator pedal assembly
